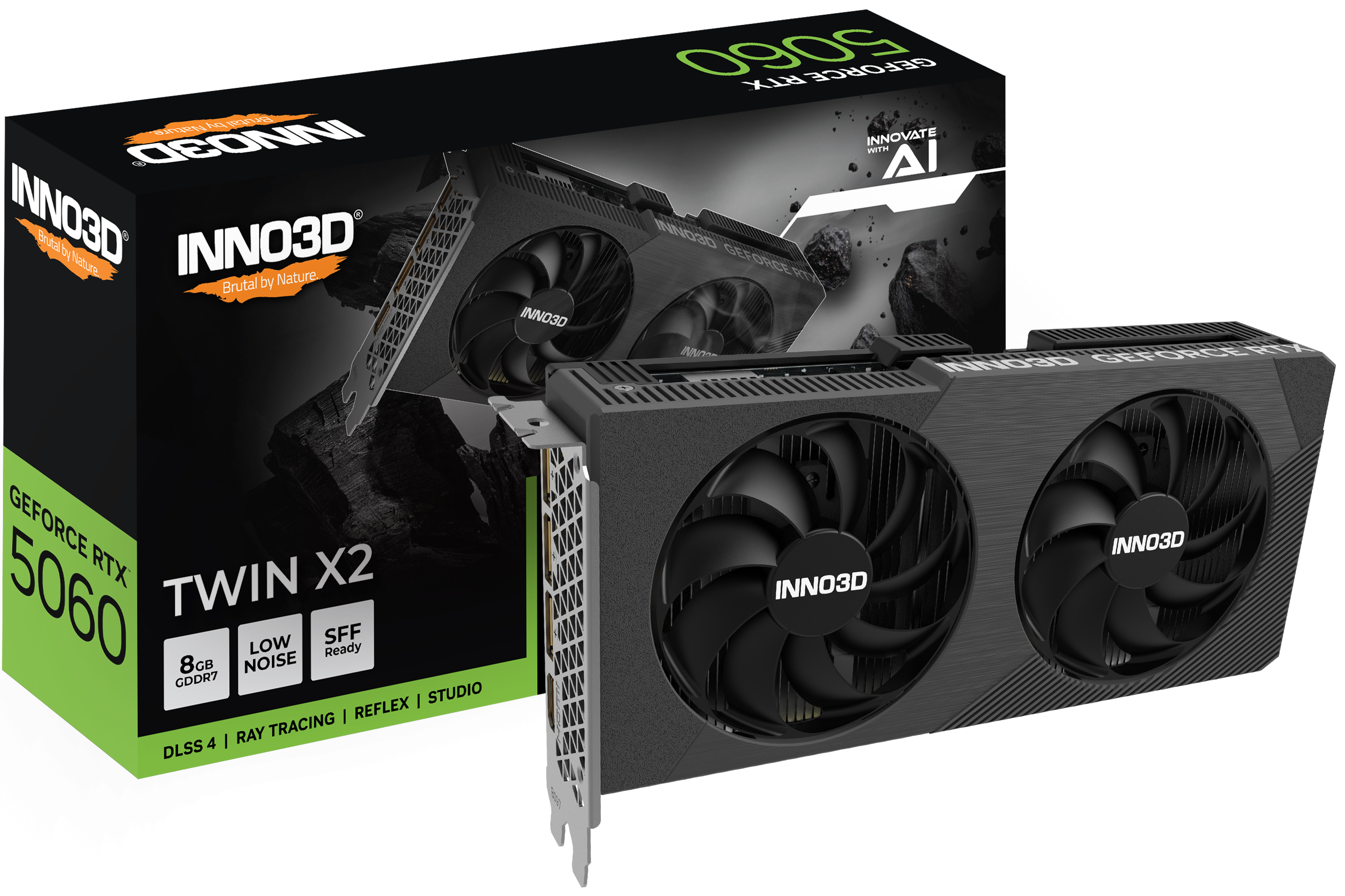

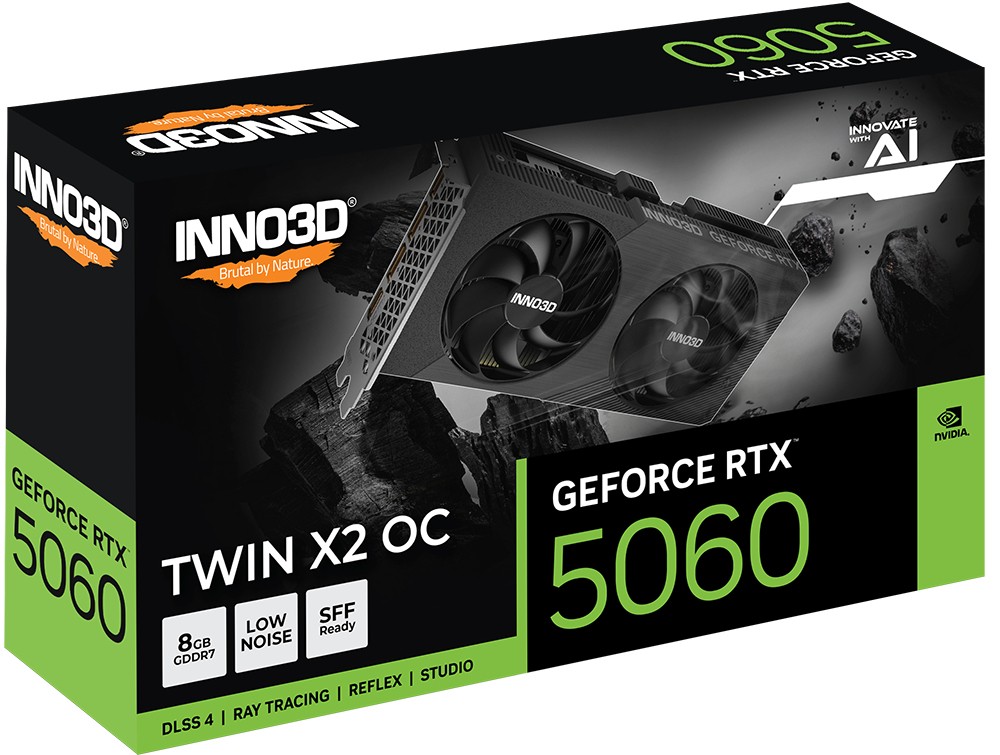

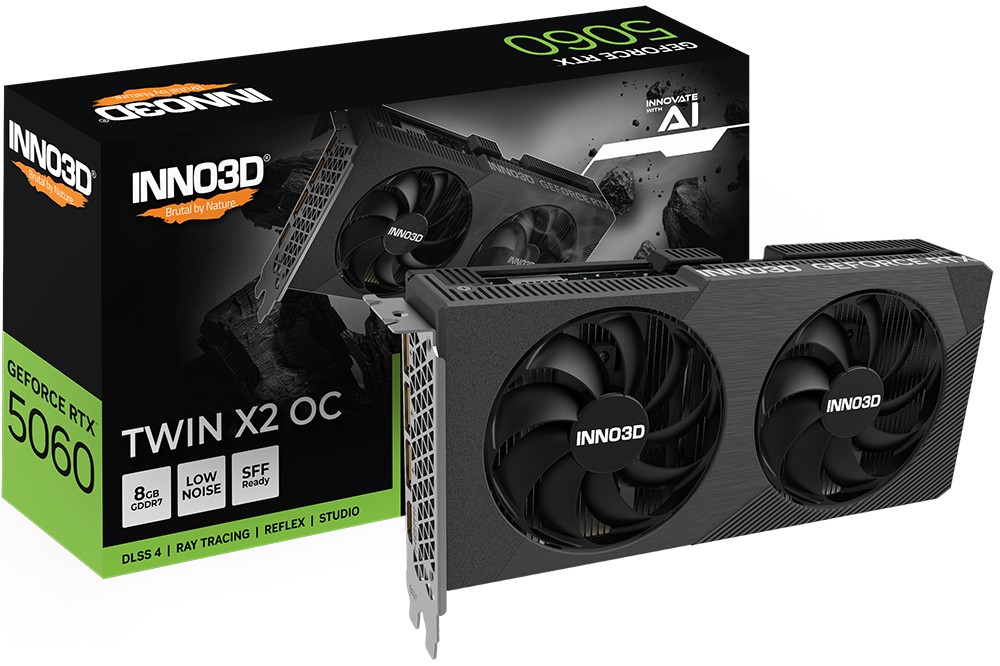

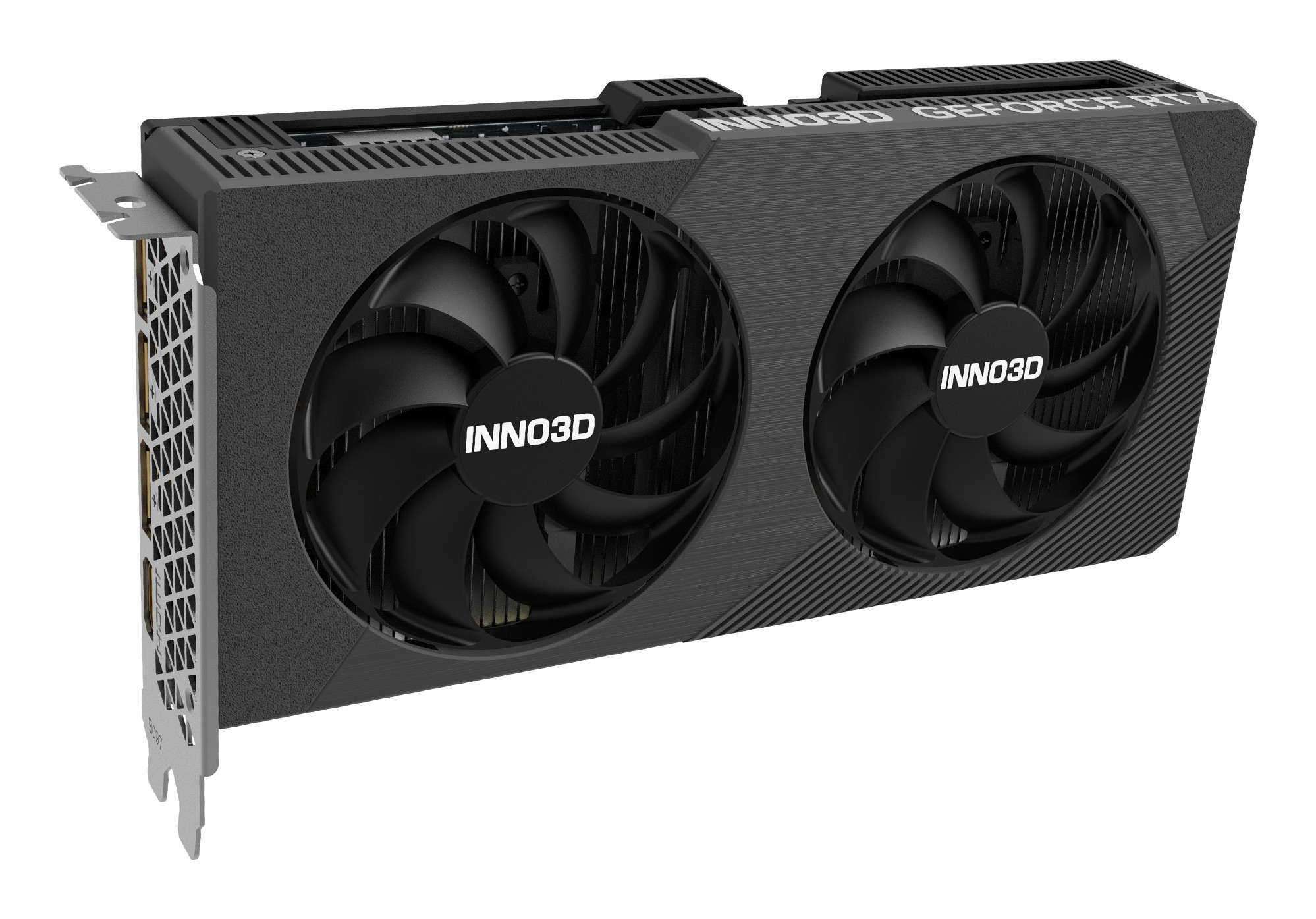

INNO3D GeForce RTX™ 5060 TWIN X2

GPU Engine Specs
CUDA Cores
3840
Boost Clock (MHz)
2497MHz
Base Clock (MHz)
2280MHz
Thermal and Power Spec
Minimum System Power Requirement (W)
550W
Supplementary Power Connectors
1x PCIe 8-pin cables
Memory Specs
Memory Clock
28Gbps
Standard Memory Config
8GB
Memory Interface
GDDR7
Memory Interface Width
128-bit
Memory Bandwidth (GB/sec)
448 GB/sec
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
4th Generation, 58 TFLOPS
Tensor Cores
5th Generation, 614 AI TOPS
NVIDIA Architecture
Blackwell
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
4
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI Express Gen 5
NVIDIA ShadowPlay
Yes
OS Certification
Windows 11, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
1.4
OpenGL
4.6
NVIDIA Encoder
1x Ninth Generation
NVIDIA Decoder
1x Sixth Generation
Accessories
Graphics Card Dimensions
Length
225mm
Height
116mm
Width
41mm
Display Support
Multi Monitor
up to 4
Maxmium Digital Resolution
4K at 480Hz or 8K at 165Hz with DSC
HDCP
2.3
Standard Display Connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b
