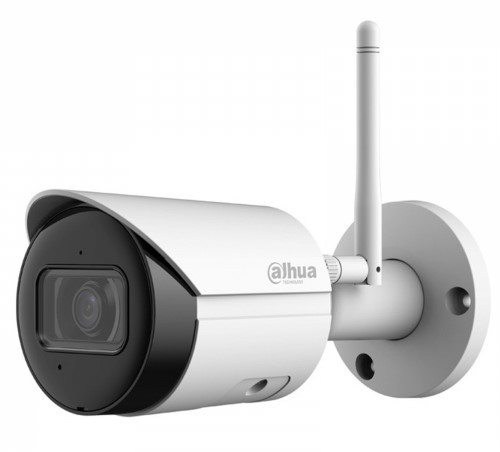

Camera Ip 2Mp Wifi Bullet 3,6Mm Ir30M Ip67 Microsd 12V

Specifiche

Camera

Image Sensor  1/2.8" CMOS

Max. Resolution  1920 (H) × 1080 (V)

ROM  16 MB

RAM  64 MB

Scanning System  Progressive

Electronic Shutter Speed  Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.025 lux@F2.0 (Color, 30 IRE)

0.0025 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio  >56 dB

Illumination Distance  30 m (98.43 ft) (IR LED)

Illuminator On/Off Control  Auto; manual

Illuminator Number  1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type  Fixed-focal

Lens Mount  M12

Focal Length  3,6mm

Max. Aperture  F2.0

Field of View  Horizontal: 86°; Vertical: 43°; Diagonal: 102°

Iris Control  Fixed

Close Focus Distance 1.0 m (3.28 ft)

Video

Video Compression  H.264B; H.264; H.264H; H.265

Smart Codec  Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080 (1–25/30 fps)

Sub stream: 704 × 576 (1–25 fps) 704 × 480 (1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability  2 streams

Resolution  1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps

H265: 9 kbps–4096 kbps

Day/Night  Auto (ICR)/Color/B/W

BLC Yes

WDR  DWDR

White Balance  Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control Auto

Noise Reduction  3D NR

Motion Detection  OFF/ON (4 areas, rectangular)

Region of Interest (RoI)  Yes (4 areas)

Smart Illumination  Yes

Image Rotation  0°/180°

Mirror  Yes

Audio

Built-in MIC  Yes

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change; SMD (human)

Network

Network Port  RJ-45 (10/100 Base-T)

Wi-Fi  IEEE802.11b/g/n 2.4–2.4835 GHz

Wireless Range  Up to 80 m (The performance varies based on actual environment)

SDK and API  Yes

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability  ONVIF® (Profile S/Profile G); CGI; P2P

User/Host  6 (Total bandwidth: 36 M)

Storage  Micro SD card (support max. 256 GB, sold separately)

Browser  IE; Chrome; Firefox

Management Software  Smart PSS; DSS; DMSS

Mobile Client  iOS; Android

Certification

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED: Radio Equipment Directive 2014/53/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

FCC ID: FCC PART 15C

Power

Power Supply  12 VDC

Power Consumption

Basic: 2 W (12 VDC)

Max. (H.265+IR intensity): 4.1 W (12 VDC)

Environment

Operating Temperature  –40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity ≤95%

Storage Temperature  –30 °C to +70 °C (–22 °F to +158 °F)

Protection IP67

Structure Casing  Metal

Product Dimensions  166.2 mm × 70.0 mm × 128.6 mm (6.53" × 2.76" × 5.06")

Net Weight 477.9 g (1.05 lb)

Gross Weight  696.5 g (1.50 lb)
