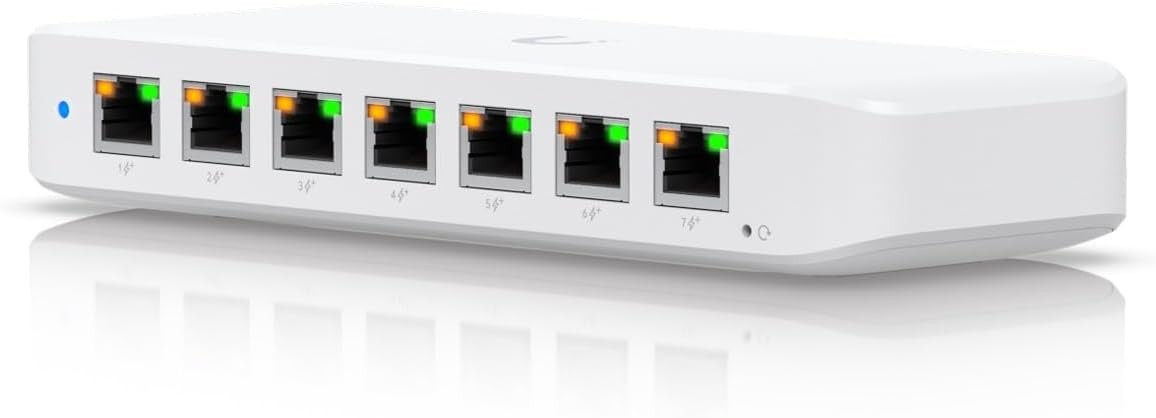

UbiQuiti UniFi Switch USW-ULTRA-210W

Mechanical
Dimensions    203 x 76 x 33 mm (8 x 3 x 1.3")
Weight    Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
Enclosure material    Polycarbonate
Hardware
Management interface    Ethernet In-Band
Networking interface    (8) GbE RJ45 ports
PoE interface    (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput    8 Gbps
Switching capacity    16 Gbps
Power method    (1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power supply    54V, external, 3.9A/210W
Supported voltage range    44—57V DC
Max. power consumption    9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total available PoE    PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE+ wattage per port by PSE    30W
Button    Factory reset
Ambient operating temperature    PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity    10 to 90% noncondensing
Certifications    CE, FCC, IC
Switching Features
Layer 2 features    Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features    –
LEDs
System    Status
Ethernet    PoE
Link/activity
Application Requirements
UniFi Network    Version 8.0.7 and later
