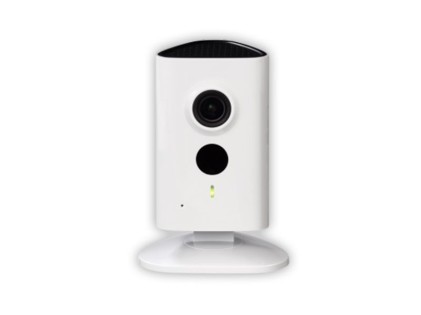

Camera Ip 1,3Mp Cube 2,3Mm Ir10M Sd Card Wifi Microfono Dc5V

Descrizione

Documento senza titolo
Model     DH-IPC-C15
Camera
Image Sensor     1/3” 1.3Megapixel CMOS
Effective Pixels     1280(H)x960(V)
Scanning System     Progressive
Electronic Shutter Speed     Auto/Manual, 1/3(4)~1/30000s
Min. Illumination     1.96lux/F1.2(color),0lux/F1.2(IR on)
S/N Ratio     More than 50dB
Video Output     N/A
Camera Features
Max. LEDs Length     10m
Day/Night     Auto(ICR) / Color / B/W
Backlight Compensation     BLC / HLC / DWDR
White Balance     Auto/Manual
Gain Control     Auto/Manual
Noise Reduction     3D
Lens
Focal Length     2.3mm
Max Aperture     F1.2
Focus Control     Manual
Angle of View     125°
Lens Type     Fixed Lens
Mount Type     Board-in Type
Video
Compression     H.264/H.264B/H.264H/MJEPG
Resolution     1.3MP/720P/VGA/QVGA
Frame Rate     Main Stream     1.3MP/720P(1~30fps)
Sub Stream     VGA/QVGA(1~30fps)
Bit Rate     H.264: 32Kbps～8192Kbps
Audio
Compression     G.711a;G.711Mu;AAC
Interface     Built-in Mic/Speaker
Network
Ethernet     NA
Wi-Fi     Wi-Fi(IEEE802.11b/g/n)
50m(open field)
Protocol     IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,FTP, QoS,
Compatibility     ONVIF CGI
Max. User Access     20 users
Smart Phone     iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot     Micro SD, up to 128GB
RS485     N/A
Alarm     N/A
PIR Sensor Range     N/A
USB     Micro USB
General
Power Supply     DC 5V
Power Consumption     <4.5W
Working Environment     -10°C~+45°C, Less than 95%RH
Ingress Protection     N/A
Vandal Resistance     N/A
Dimensions(W×D×H)     76mm*65mm*107mm
Weight     0.14Kg(0.36Kg with package)
