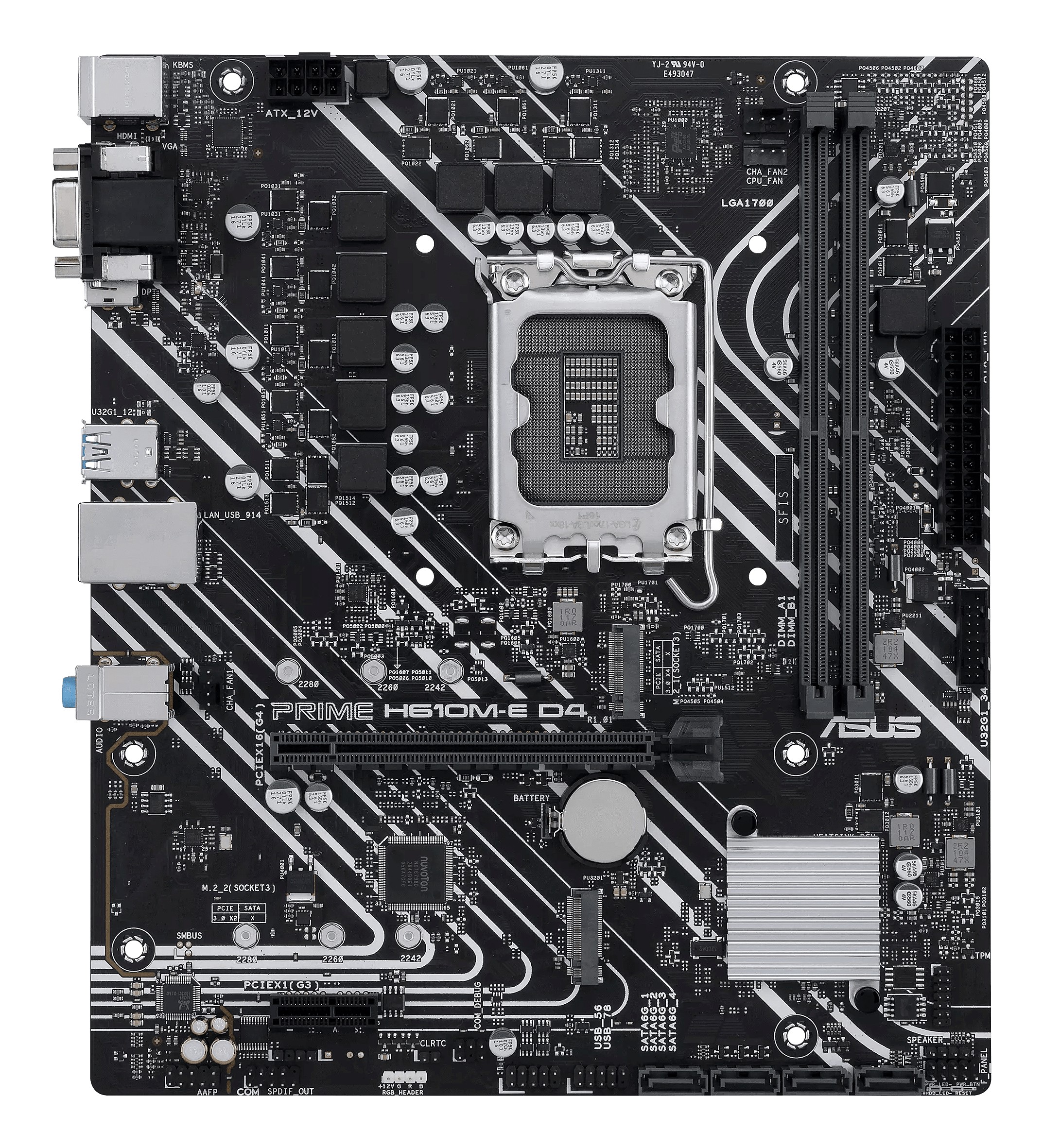

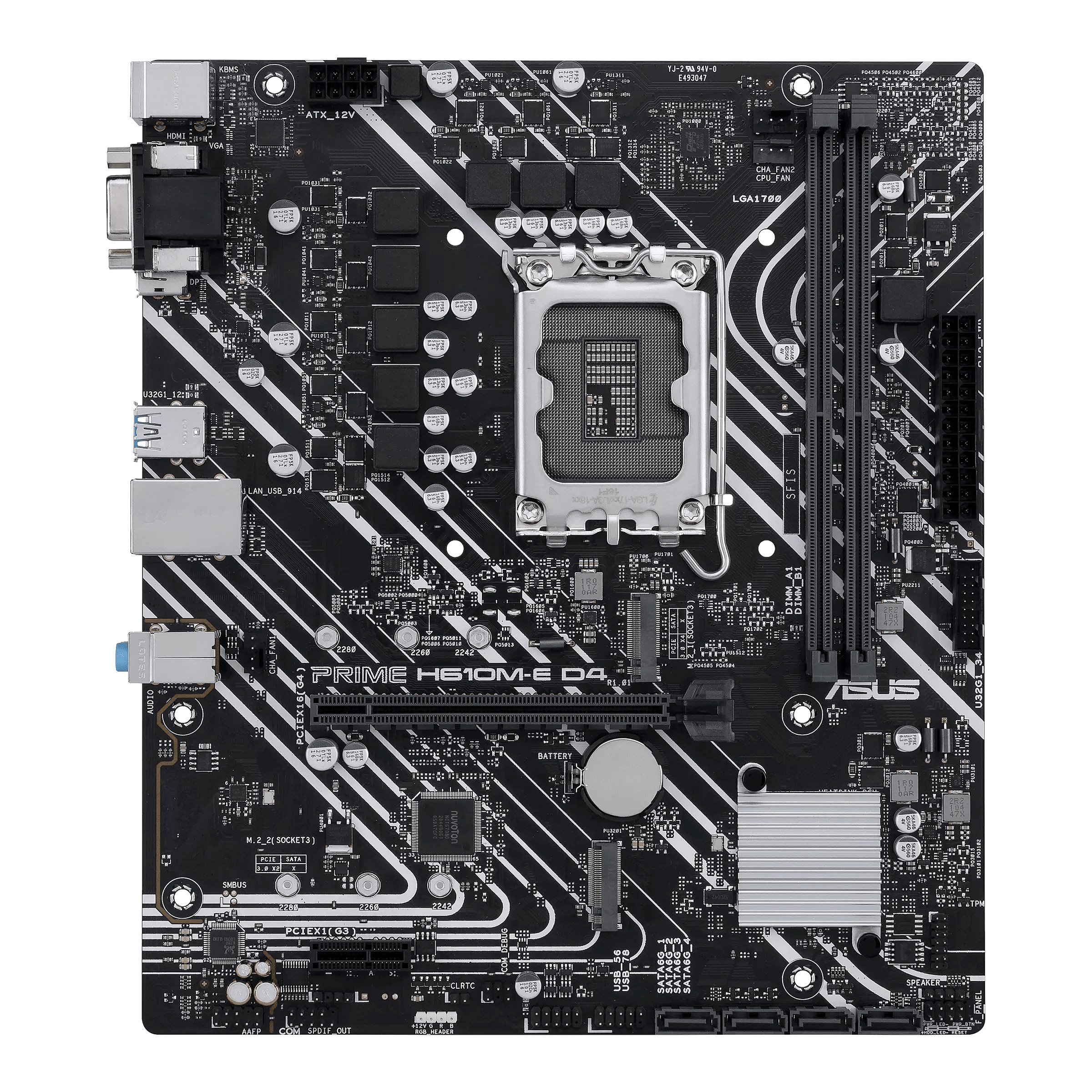

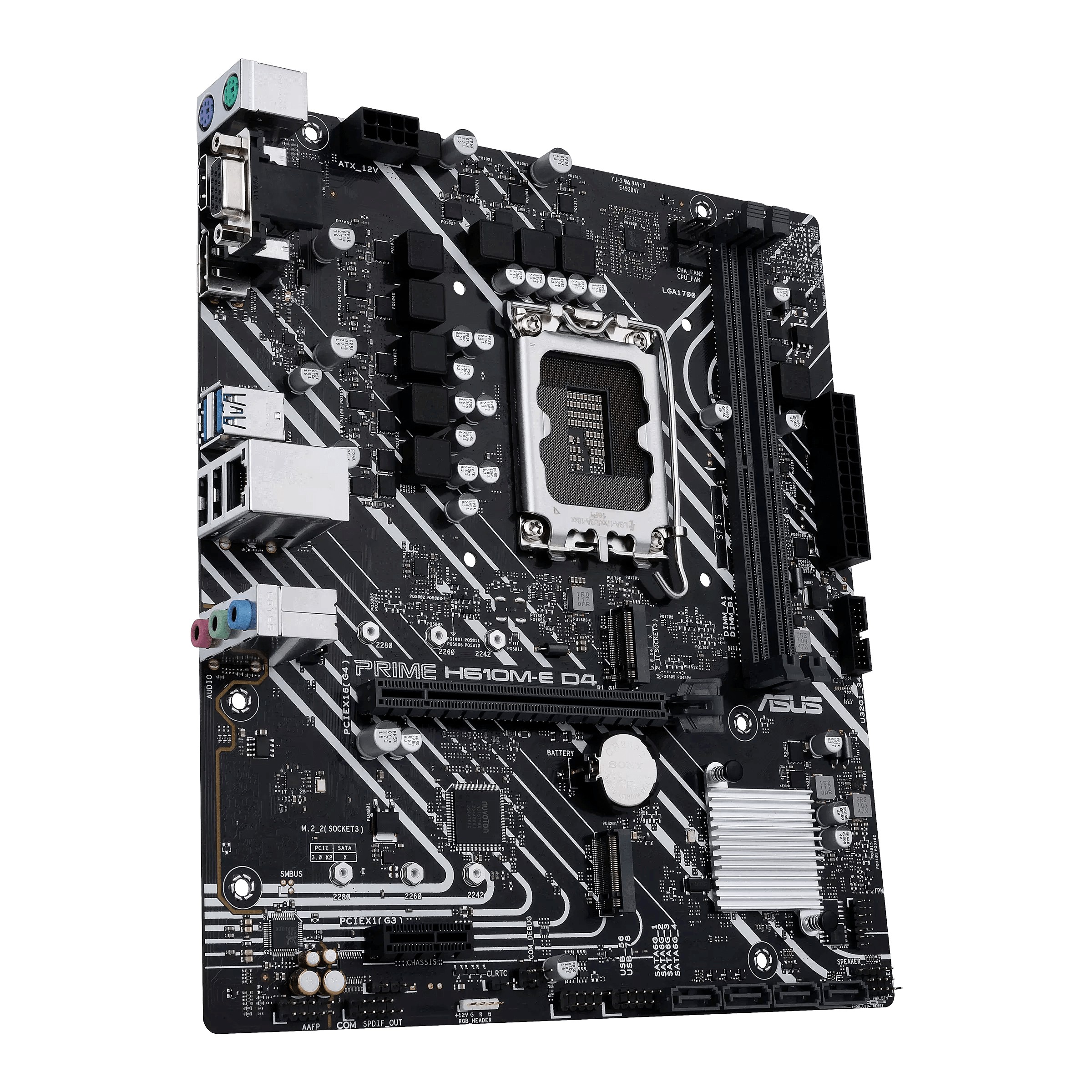

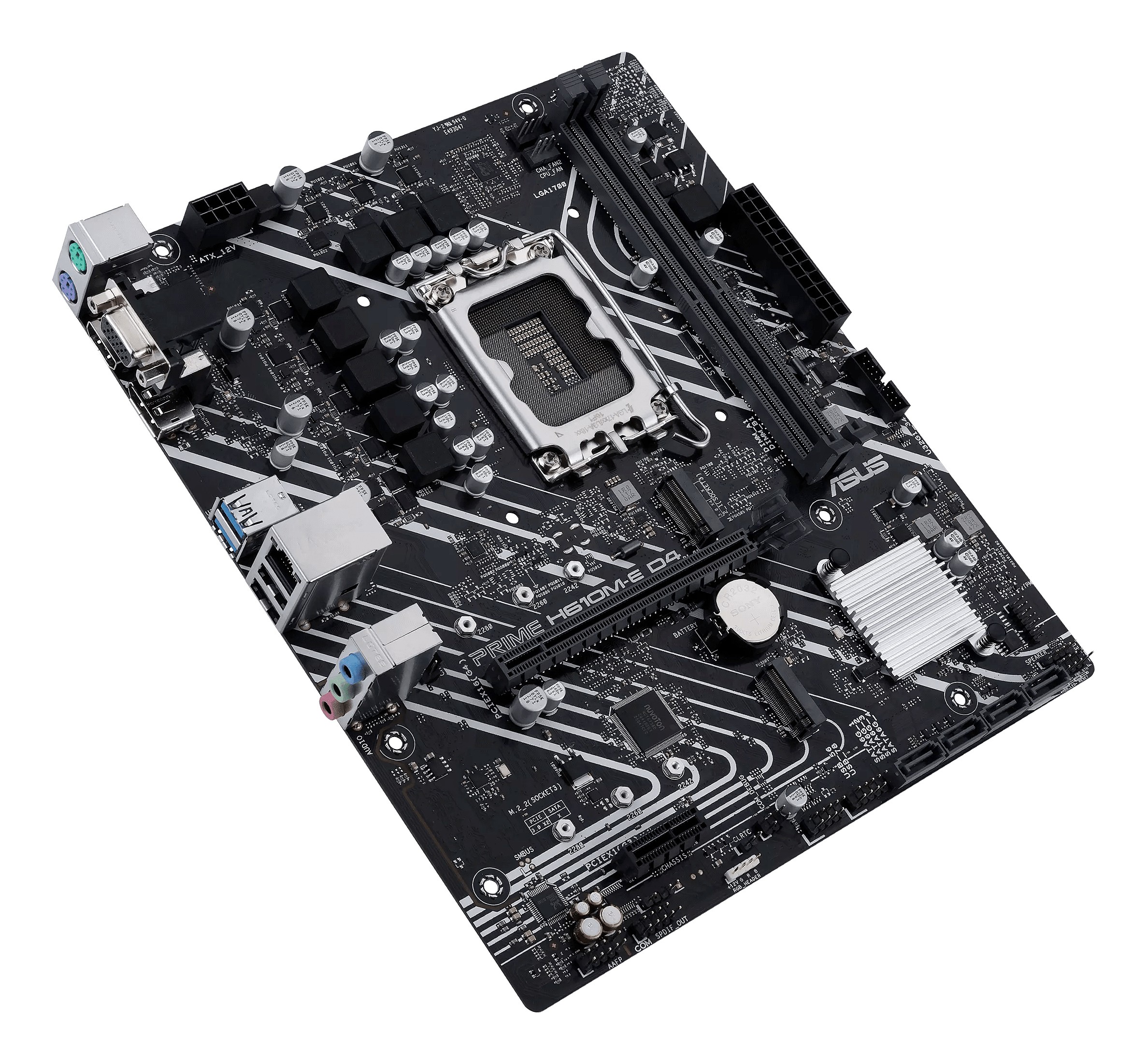

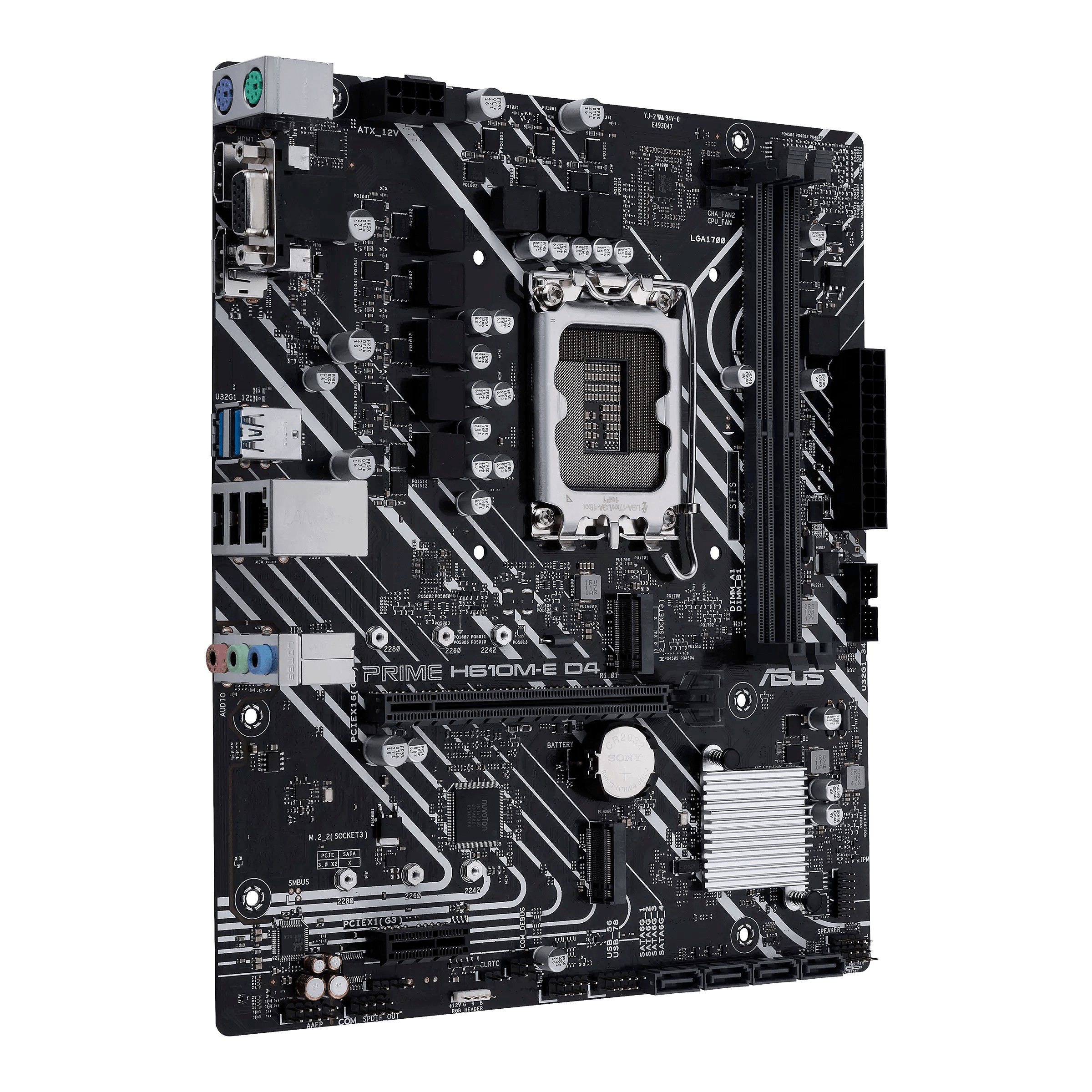

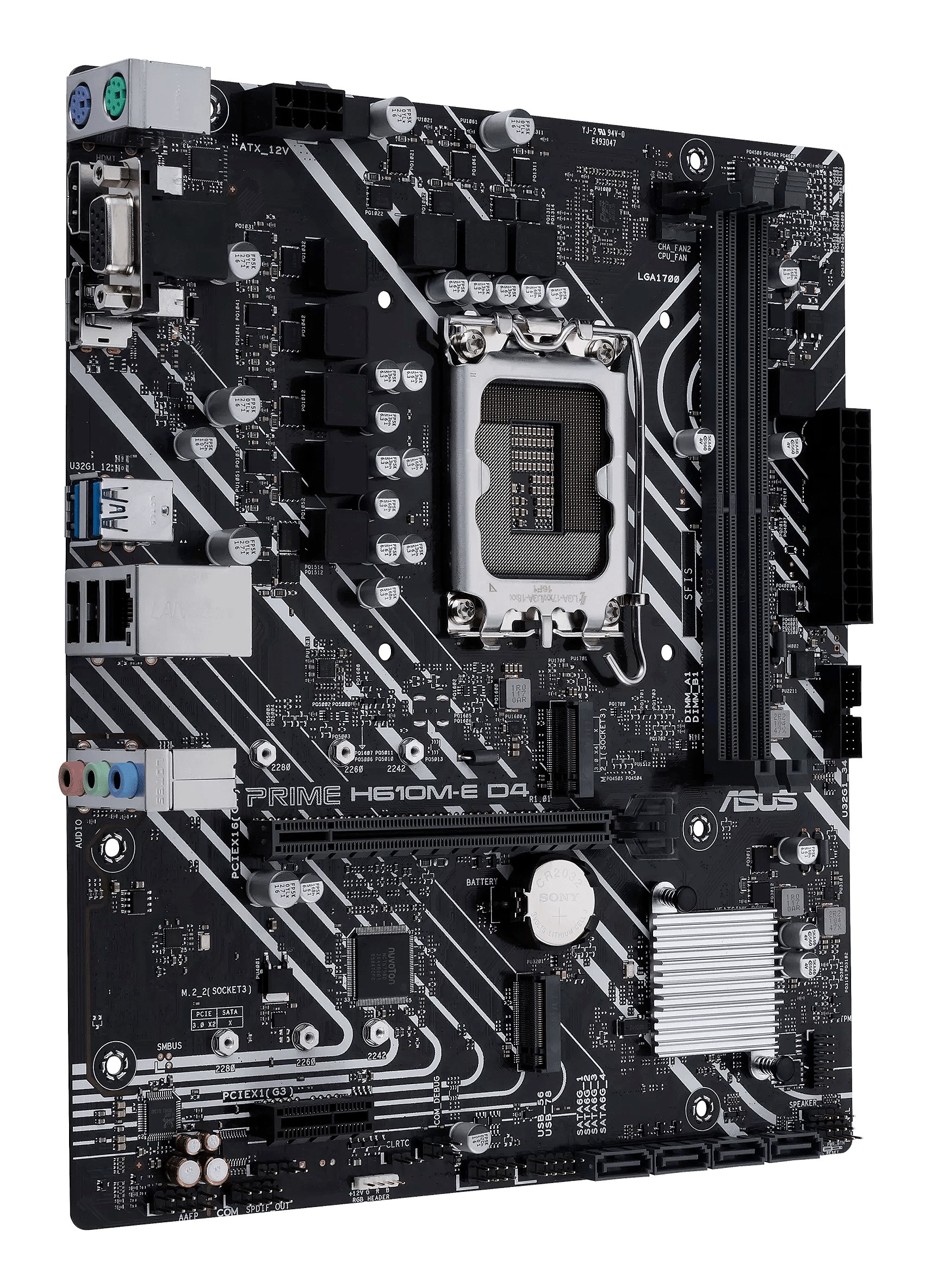

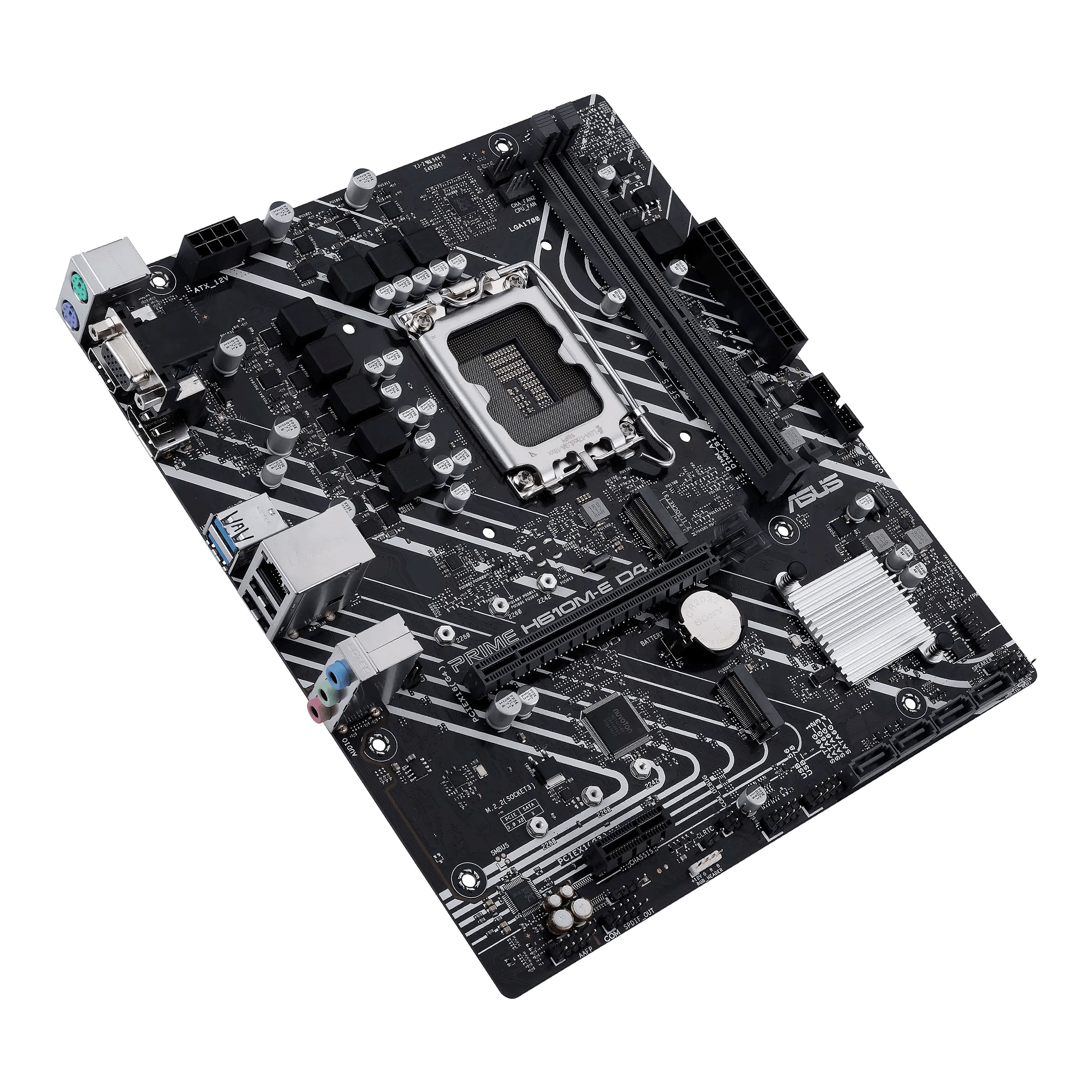

Asus Mb Prime H610M-E D4, Lga 1700, H610, Dual M.2 - Csm

Codice: RN-PRIME H610M-E D4-CSM

Produttore: Asus

PN: PRIME H610M-E D4-CSM

EAN: 4711081514800



119.29 €

Disponibile

Costo spedizione: Spedizione gratuita Dettagli

Spedizione/ritiro entro 6/8 giorni lavorativi Dettagli

Reso facile entro 30 giorni dalla consegna Dettagli



ASUS PRIME H610M-E D4-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, 64 GB, DIMM

ASUS PRIME H610M-E D4-CSM. Produttore processore: Intel, Presa per processore: LGA 1700, Processori compatibili: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Tipi di memoria supportati: DDR4-SDRAM, RAM massima supportata: 64 GB, tipo di slot di memoria: DIMM. Tipo di interfaccia Ethernet: Gigabit Ethernet. Componente per: PC, Fattore di forma scheda madre: micro ATX, Famiglia di chipset per scheda madre: Intel. Larghezza: 244 mm, Profondità: 211 mm, Altezza: 221 mm

Processore
Produttore processoreIntel
Presa per processoreLGA 1700
Processori compatibiliIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Numero massimo processori SMP1
Memoria
Tipi di memoria supportatiDDR4-SDRAM
Numero di slot di memoria2
RAM massima supportata64 GB
tipo di slot di memoriaDIMM
Canali di memoriaDual-channel
Non-ECC
Velocità di memoria supportate2133,2400,2666,2800,2933,3000,3200 MHz
Senza buffer
I/O interni
Connettori USB 2.02
Connettori USB 3.2 Gen 1 (3.1 Gen 1)1
Numero di connettori SATA III4
Connettore uscita S/PDIF
Connettore audio
Connettore ATX (24-PIN)
Connettore ventola CPU
Numero di connettori ventola chassis2
Numero di connettori COM1
Connettore TPM
Connettore con potenza 12V

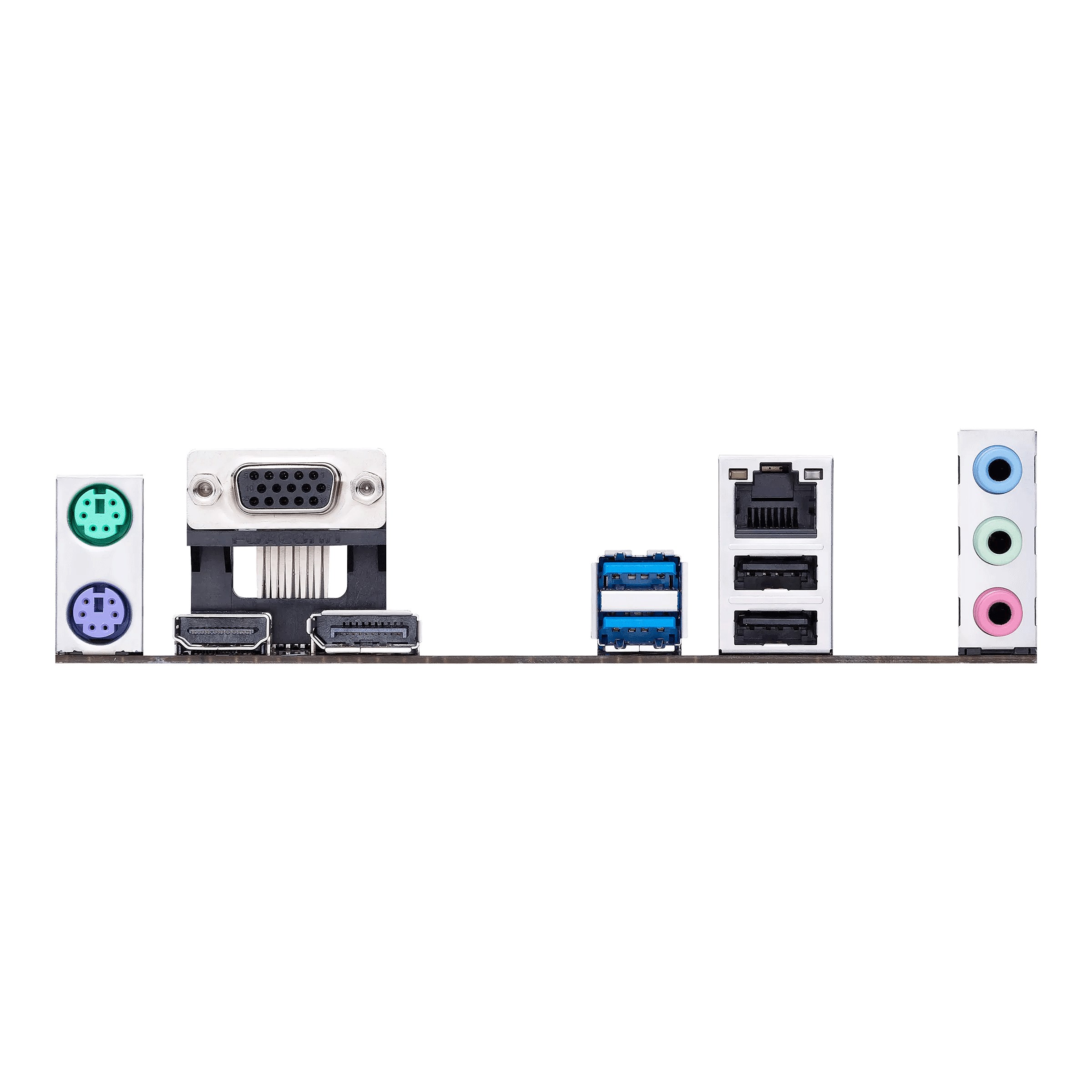

Pannello posteriore porte I/O
Quantità porte USB 2.02
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A2
Quantità porte Ethernet LAN (RJ-45)1
Quantità porte VGA (D-Sub)1
Quantità porte HDMI1
Quantità porte PS/21
Versione HDMI2.1
Quantità DisplayPorts1
versione DisplayPort1.4
Collegamento in rete
Wi-FiNo
Collegamento ethernet LAN
Tipo di interfaccia EthernetGigabit Ethernet
Wake-on-LAN ready
Caratteristiche
Componente perPC
Fattore di forma scheda madremicro ATX
Famiglia di chipset per scheda madreIntel
Chipset scheda madreIntel H610
Sistema audio7.1 canali
Sistema operativo Windows supportatoWindows 10 x64, Windows 11 x64
Slot espansione
Slot PCI Express x1 (Gen 3.x)1
Slot PCI Express x16 (Gen 4.x)1
Numero di slot di M.2 (M)2
Dati logistici
Codice del Sistema Armonizzato (SA)84733020
Dimensioni e peso
Larghezza244 mm
Profondità211 mm
Altezza221 mm
Contenuto dell'imballo
Cavi inclusiSATA
Drivers inclusi
Altre caratteristiche
Peso382 g
Fattore di forma
micro ATX
Chipset
Intel H610
