| Model NO. | ROSI-QHD3008CH |
| OPERATION SYSTEM | LINUX |
| VIDEO | |
| VIDEO SYSTEM | NTSC/PAL Switch Selectable |
| INPUT | BNC*8,1.0Vp-p,75ohm |
| CVBS OUTPUT | NTSC:720*480 |
| PAL:720*576 | |
| SPOT | NA |
| HDMI OUTPUT | 1 HDMI Output |
| VGA OUTPUT | 1 VGA Output |
| LOOP OUT | NA |
| AUDIO | |
| INPUT | 1CH, RCA |
| OUTPUT | 1CH, RCA |
| TALK BACK | YES |
| CONTROL | |
| MOUSE | 2*USB2.0 |
| IR CONTROLLER | YES |
| KEYBOARD | NA |
| STORAGE | |
| BUILD IN INTERFACE | SATA 2.6 *1(1*HDD 4TB ) |
| DISPLAY | |
| DIVISION | 1, 4, 6, 8, 9 |
| ZOOM | Preview Zoom Support |
| RECORDING | |
| COMPRESSION | H.264(High profile) |
| RECORDING MODE | Manual/Schedule/Motion Detection/Sensor |
| RESOLUTION | NTSC:960*480， 704*480 |
| PAL:960*576，704*576 | |
| RECORD FRAME RATE | NTSC:120FPS@960H，240FPS@D1 |
| PAL:120FPS@960H，200FPS@D1 | |
| (8CH 960H/D1) | |
| QUALITY | Worst, Worse, General, Good, Better, Best |
| MOTION DETECTION | Sensitivity: Multi Level,22*15Grid |
| WATER MARK | NO |
| PLAYBACK | |
| SYNC PLAYBACK | 1 |
| SPEED | Normal, FF(1X, 2X, 4X, 8X, 16X), Slow (1/2X, 1/4X), RW (8X, 16X, 32X) |
| SEARCH METHOD | Time, Event, Channels and Calendar |
| COMMUNICATION | |
| REMOTE ACCESS | IE ( 6.0 and above), Firefox, Chrome, Opera, ISS ( Windows XP/WIN7/WIN8 ), ISS MOBILE ( IOS, Android ) |
| REMOTE OPERATION | Remote view, remote playback, remote setup |
| NETWORK SERVICE | TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE |
| MOBILE DEVICE | Iphone, Ipad, Android |
| 3G EXTERNAL MODULE | Yes, with USB 2.0 Port |
| WAN RJ45 | 10/100Mbit/s |
| WIFI EXTERNAL MODULE | Yes, with USB 2.0 Port, 100Meters |
| GUI INTERFACE | Supported GUI 16 Bit True Color |
| PTZ PROTOCOL | PELCO-D, PELCO-P, etc. |
| BACKUP | |
| INTERNAL | NA |
| EXTERNAL | 2*USB2.0 |
| NETWORK | YES |
| FILE FORMAT | AVI |
| GENERAL | |
| ALARM IN/OUT | NA |
| RS-485 | 1 |
| RS-232 | NA |
| UNIT DIMENSION(mm) | 57*41*31cm |
| OPERATION TEMPERATURE | 10°～40° |
| WORKING HUMIDITY | 10% ~ 90% |
| POWER CONSUMPTION | DC 12V,2A, |

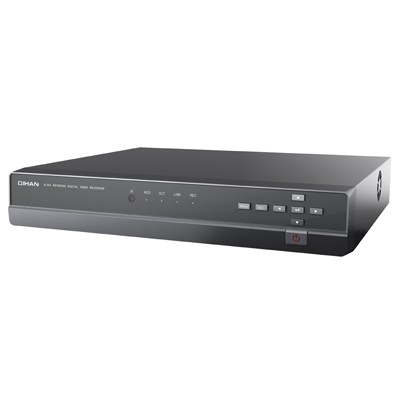

Recensioni Videoregistratore DVR: 8 Canali, 120FPS@960H, 1 Slot Sata 4TB, Hdmi/vga Output, RS485
