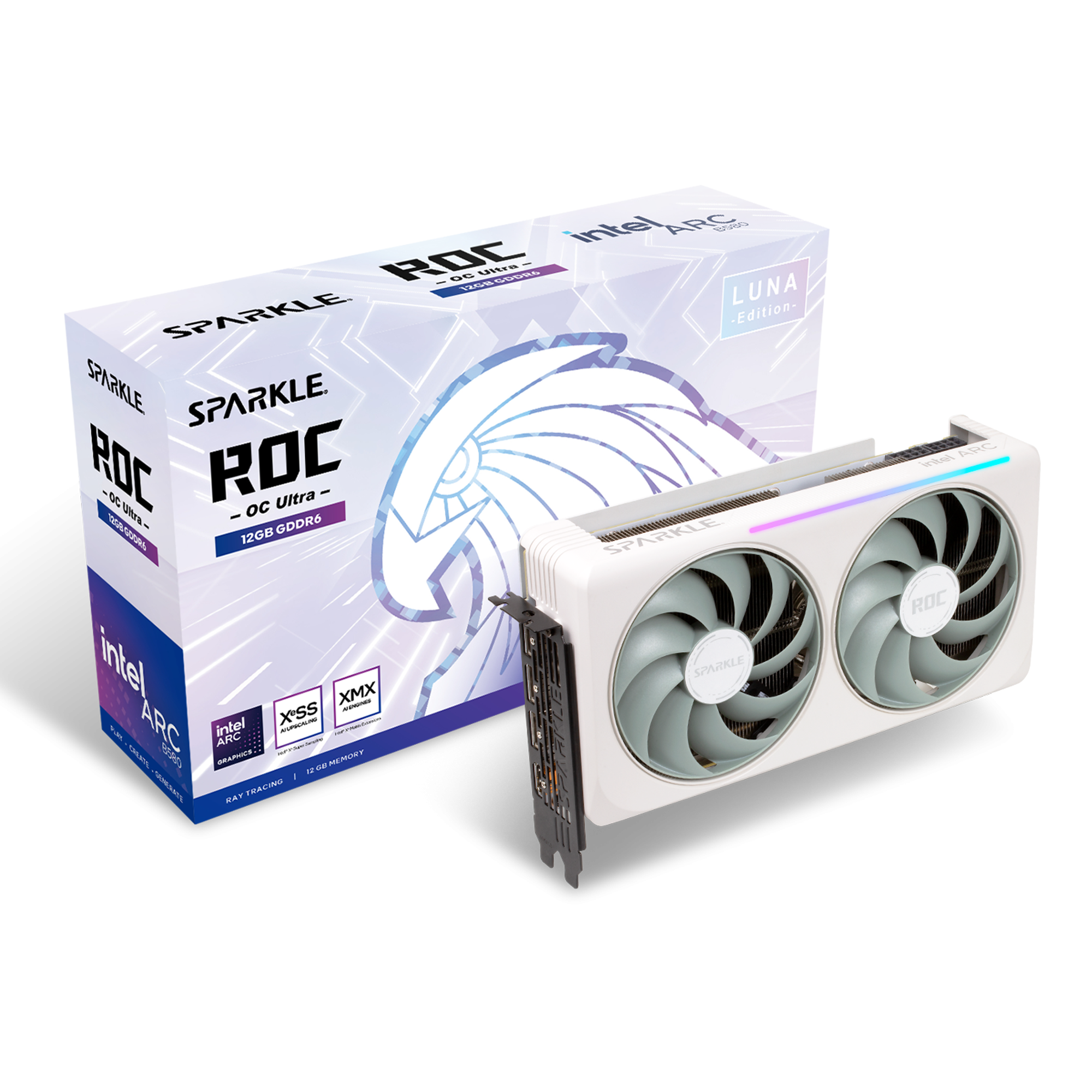

VGA SPARKLE Intel ARC B580 12GB ROC Luna OC Ultra (Battlemage Lineup)

SPECFICATIONS
⚫ Graphics Clock: 2800 MHz
⚫ Xe-Core: 20
⚫ Ray Tracing Units: 20
⚫ Intel® XMX Engines: 160
⚫ GPU Peak Tops (Int8): 233
⚫ Memory Size: 12GB GDDR6
⚫ Graphics Memory Interface: 192-bit
⚫ Graphics Memory Bandwidth: 456 GB/s
⚫ Max Res.: Up to 8K at 120Hz HDR with DSC
⚫ PCI Express Configurations: PCI Express 4.0 x8
⚫ TBP: 210 Watt
⚫ Lighting: ARGB with SPARKLE Software Control
⚫ EAN: 4711342291075
KEY FEATURES
⚫ ARGB Lighting with Software Control
⚫ 2x 105mm FDB Fans
⚫ Metal Backplate, Pre-Installed
⚫ Ray Tracing
⚫ Variable Rate Shading (VSR)
⚫ DirectX 12 Ultimate
⚫ Vulkan 1.3
⚫ OpenGL 4.6 / OpenCL 3.0
⚫ Adaptive Sync
⚫ AV1 Encode / Decode
⚫ VP9 Bitstream & Decoding
⚫ Intel Deep Link Hyper Compute
⚫ Intel Deep Link Hyper Encode
⚫ Intel Deep Link Stream Assist.
RESOLUTION & REFRESH
⚫ HDMI 2.1 (Max): 7680 x 4320 @120Hz
⚫ 3x DisplayPort 2.1 (Max): 7680 x 4320@60Hz
REQUIREMENTS
⚫ 10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series
Processors or newer with compatible motherboards
supporting Resizable BAR / Smart Access Memory
⚫ PCI-Express® compliant MB with one x16 PCIe slot
⚫ 600W or greater PSU with 2x 8-pin PCIe power connector
⚫ 8GB of system memory minimum, 16GB recommended
⚫ Windows® 11 64-bit or Windows® 10 64-bit
DIMENSIONS
⚫ Dimension: 230 x 128 x 44mm
⚫ Weight: 880 g
⚫ Width: 2.2-Slot
