GPU

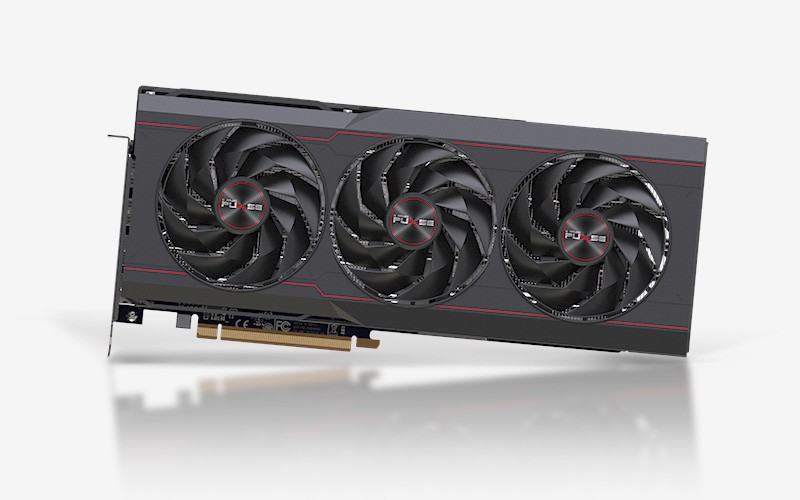

AMD Radeon™ RX 7900 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2450 MHz
Game Clock: Up to 2075 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
5376
Compute Units
84 CU (with RT+AI Accelerators)
Infinity Cache
80MB
Ray Accelerators
84
Memory Size/Bus
20GB/320 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Output
2x HDMI
2x DisplayPort
BIOS Support
UEFI
Game Index
4K
Sapphire Features
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Angular Velocity Fan Blade
Dual-Ball Bearing Fans
TriXX Supported
TriXX Boost
Accessories Bundled
Graphics Card Supporter
AMD Features
AMD RDNA™ 3 Architecture
84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
80MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1Support
AMD Radiance Display™ Engine
20GB GDDR6 on 320-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ technology
Cooler Type
3 Fans
Form Factor
2.7 slot, ATX
Dimension: 313(L)X 133.75(W)X 52.67 (H)mm
Power Consumption
331W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
