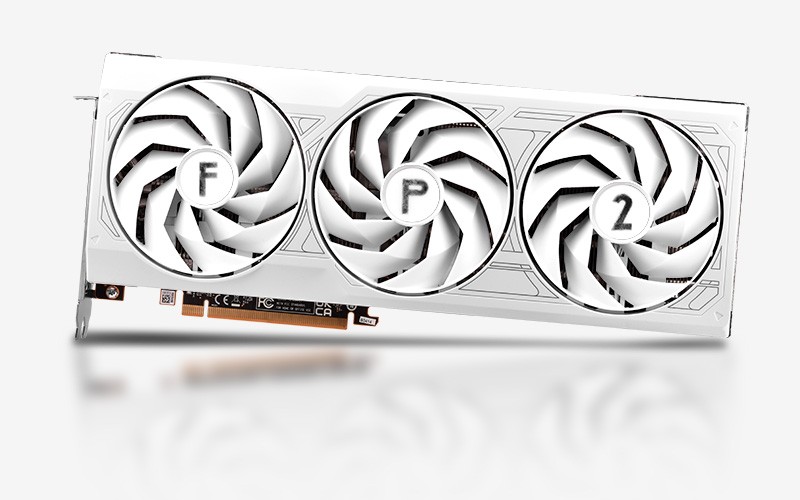

VGA SAPPHIRE PURE RADEON RX 7700 XT 12GB Gaming OC FROSTPUNK 2 Edition GDDR6 (UEFI)

GPU

AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

• Boost Clock: Up to 2584 MHz
• Game Clock: Up to 2226MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

BIOS Support

• UEFI

Game Index

1440P

Frostpunk 2 Features

• Metal Backplate with Frostpunk 2 Graphics
• 3 Keyboard Keycaps
• 3 Enamel Pins
• Frostpunk 2 Deluxe Edition Game Code
• Product package with Frostpunk 2 theme
• ARGB SAPPHIRE Logo (set to Orange default colour)

Sapphire Features

• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• ARGB SAPPHIRE Logo
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• TriXX Supported
• TriXX Boost

Accessories Bundled

White Graphics Card Supporter

AMD Features

• DirectX 12 Ultimate Support
• DisplayPort™ 2.1 Support
• AMD Radiance Display™ Engine
• AMD FidelityFX™ Super Resolution technology
• Microsoft® DirectX® 12 Ultimate Support
• Microsoft® DirectStorage Support
• Vulkan® Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition™ technology
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon™ Super Resolution technology
• AMD FreeSync™ Technology

Cooler Type

3 Fans

Form Factor

2.5 slot, ATX
Dimension: 320(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

240W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
