SPECIFICATION

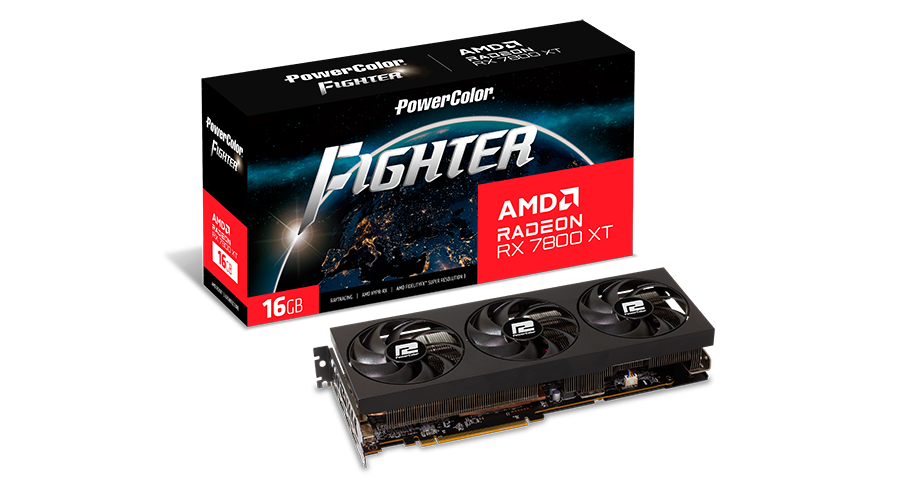

Graphics Engine RX 7800 XT 16G-F/OC
Video Memory 16GB GDDR6
Stream Processor 3840 Units
Engine Clock(OC) up to 2169MHz(Game)
up to 2475MHz(Boost)
Memory Speed 19.5 Gbps
Memory Interface 256-bit
DirectX® Support 12
Bus Standard PCIE 4.0
Standard Display Connectors 1 x HDMI 2.1，3 x DisplayPort 2.1
(only 2x simultaneous DP2.1 connections can be supported)
Customized Specifications
Product Remark 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
Feature Support
OpenGL Support
AMD Stream Technology Support
AMD Eyefinity Technology Support
AMD Smart Access Memory Support
For more infromation, please refer AMD Website.
Maximum Resolution
VGA
DVI
DisplayPort 7680×4320
HDMI 7680×4320
Power Specs + Board Dimensions
Board Dimensions 290mm*111mm*50mm
303mm*128mm*50mm(with bracket)
Minimum System Power requirement (W) 750W
Extension Power Connector Two 8-pin PCI Express Power connectors
