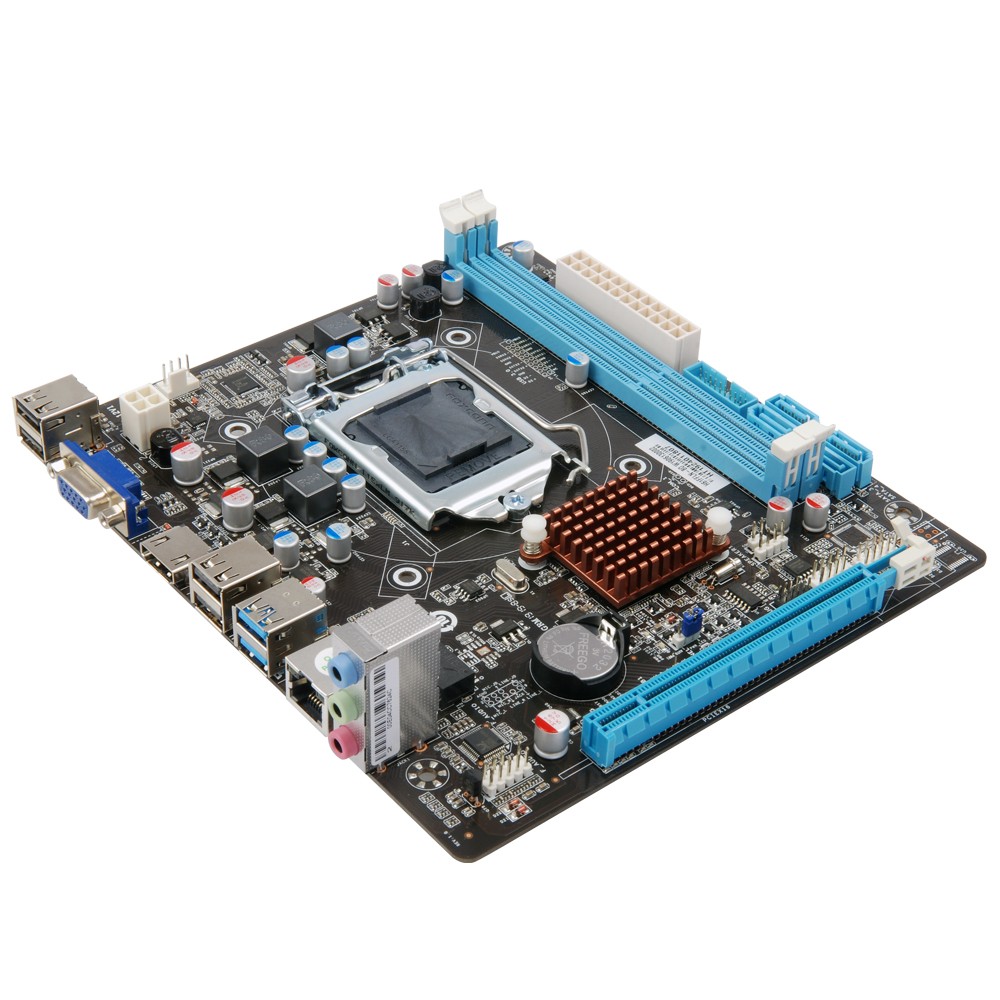

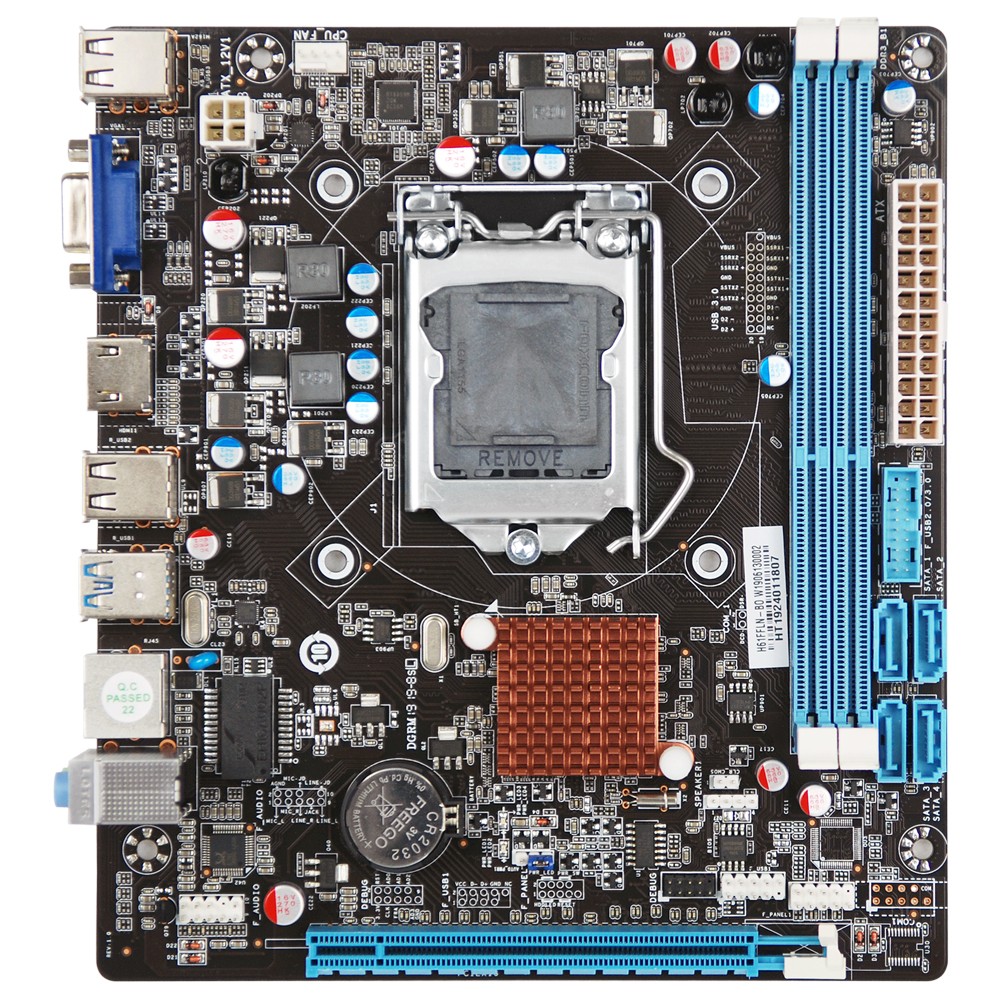

Scheda madre Esonic Intel H61 con socket per CPU 1155

Scheda madre Esonic Intel H61 con socket per CPU 1155 con le seguenti caratteristiche:

• Processori: Supporta processori Intel con socket 1155 di 2nd/3rd Generazione Core I7 / i5 / i3 / Pentium / Celeron
• Chipset: Intel H61
• Memoria: Supporta memoria 2x DDR3 1066/1333MHz DIMM
• Grafica: Integrated Graphics Processor- Intel® HD Graphics support / Multi-VGA output support : HDMI / VGA ports
• Slot: 1 x PCIe  x16 slot
• Storage: 4 x SATA 3Gb/s Ports
• LAN: Realtek Chip, 1 x 100M（Optional 1000M）
• Audio: Realtek Chip, ALC 662 6-channel audio
• USB: 10 * USB 2.0 port (6 at back panel, black, 4 at mid-board)

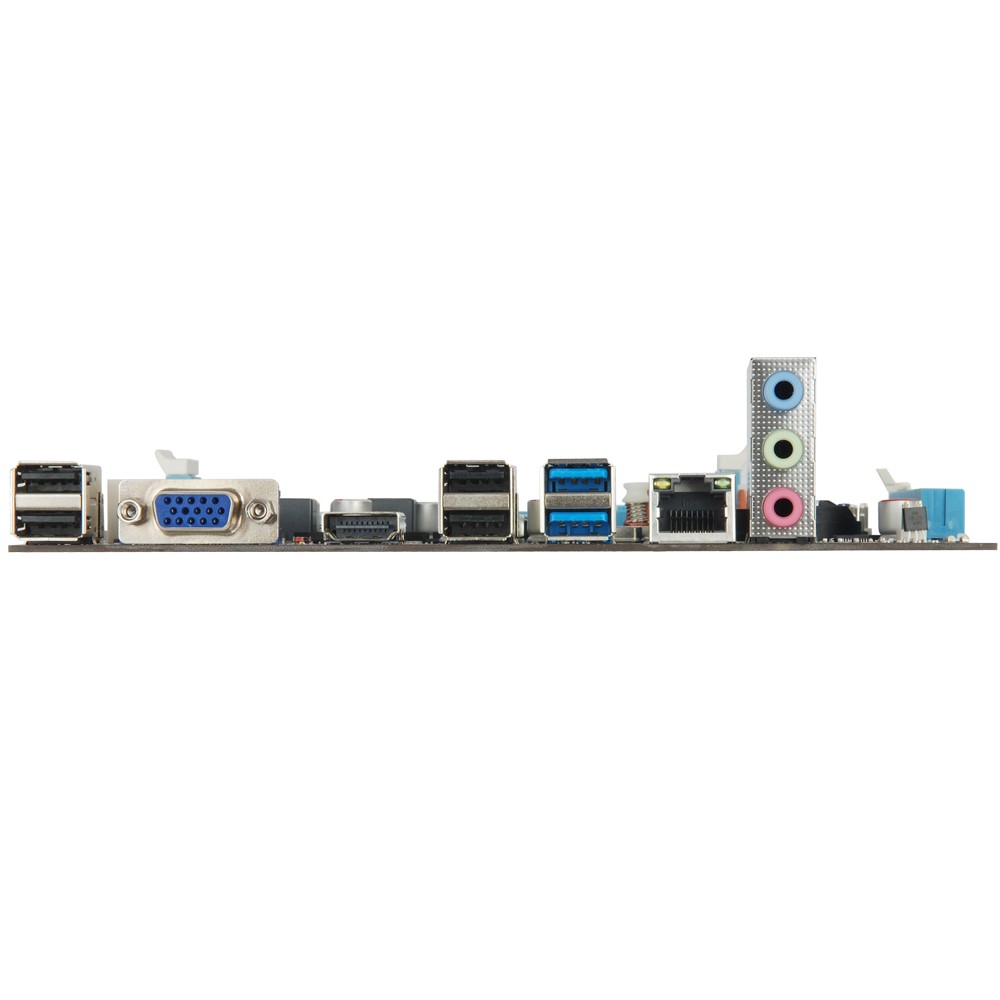

• Back Panel I/O: 1 x VGA Port - 1 x HDMI Port - 1 x LAN (RJ45)  Port - 6 x USB 2.0  Ports - 3 x flexible audio jacks
• Internal I/O: 1 x USB 19pin connector， supports 2*USB 2.0 ports - 1 x USB 2.0 connector， supports 2*USB 2.0 ports - 4x SATA 3Gb/s Ports - 1 x 4 -pin CPU_FAN/SYS_FAN connectors - 1 x 24-pin ATX power connector - 1 x 4-pin 12V ATX Power connectors - 1 x F_Audio connector - 1 x Internal Speaker connector - 1 x F_Panel  connector
• Dimensioni: 190 x 170mm
