GPU

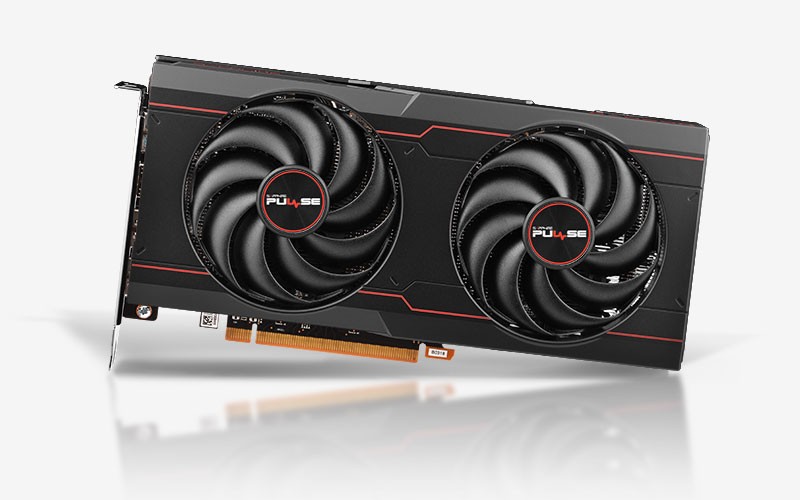

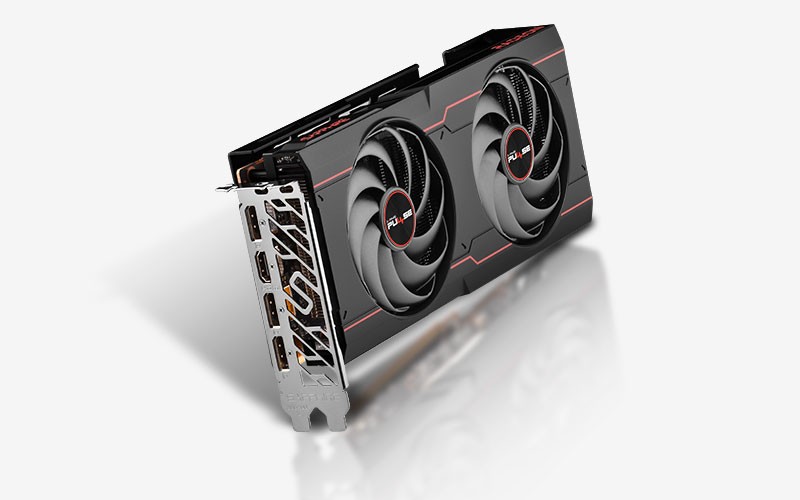

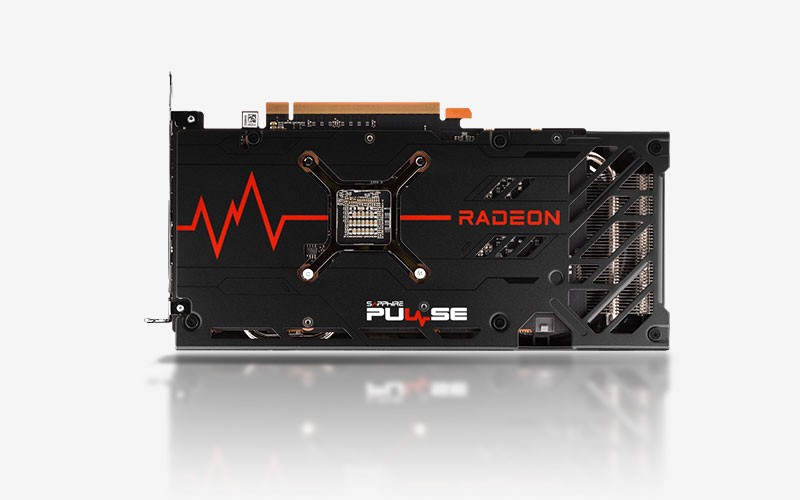

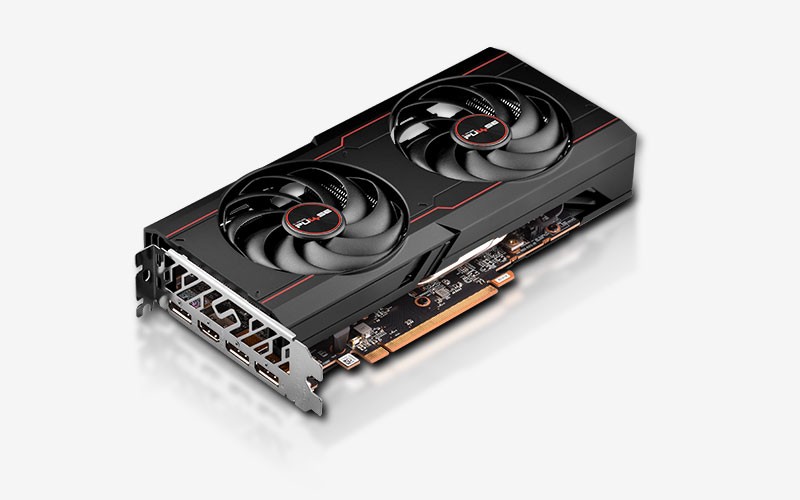

AMD Radeon™ RX 6650 XT Graphics Card
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2635 MHz
Game Clock: Up to 2410 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2048
Infinity Cache
32MB
Ray Accelerators
32
Memory Size/Bus
8GB GDDR6
Memory Clock
17.5 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0 x8
Output
1x HDMI
3x DisplayPort
BIOS Support
UEFI
Game Index
1080P
Sapphire Features
Premium Digital Power Design
Fuse Protection
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate with Thermal Pad
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
GDDR6 Memory
Smart Access Memory
Infinity Cache
7nm GPU
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
AMD FidelityFX™ Super Resolution (FSR)
AMD Radeon™ Super Resolution
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
Cooler Type
Dual Fans
Form Factor
2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm
Power Consumption
176W Total Board Power
OS
Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 500 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
