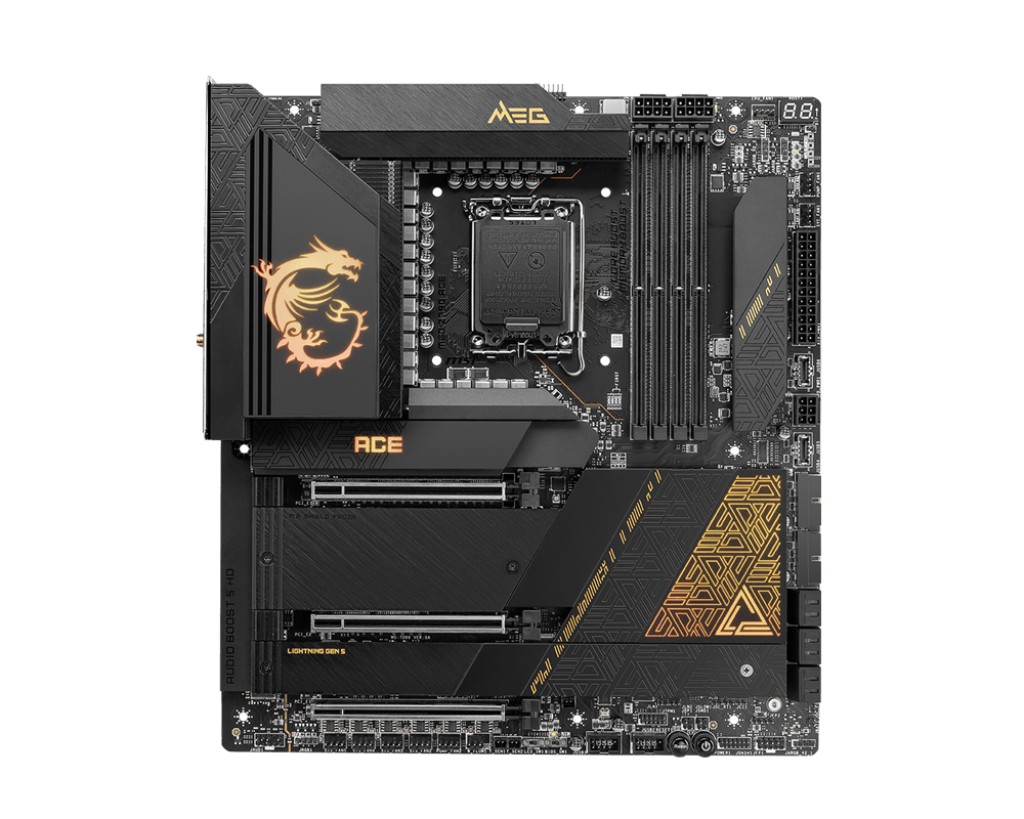

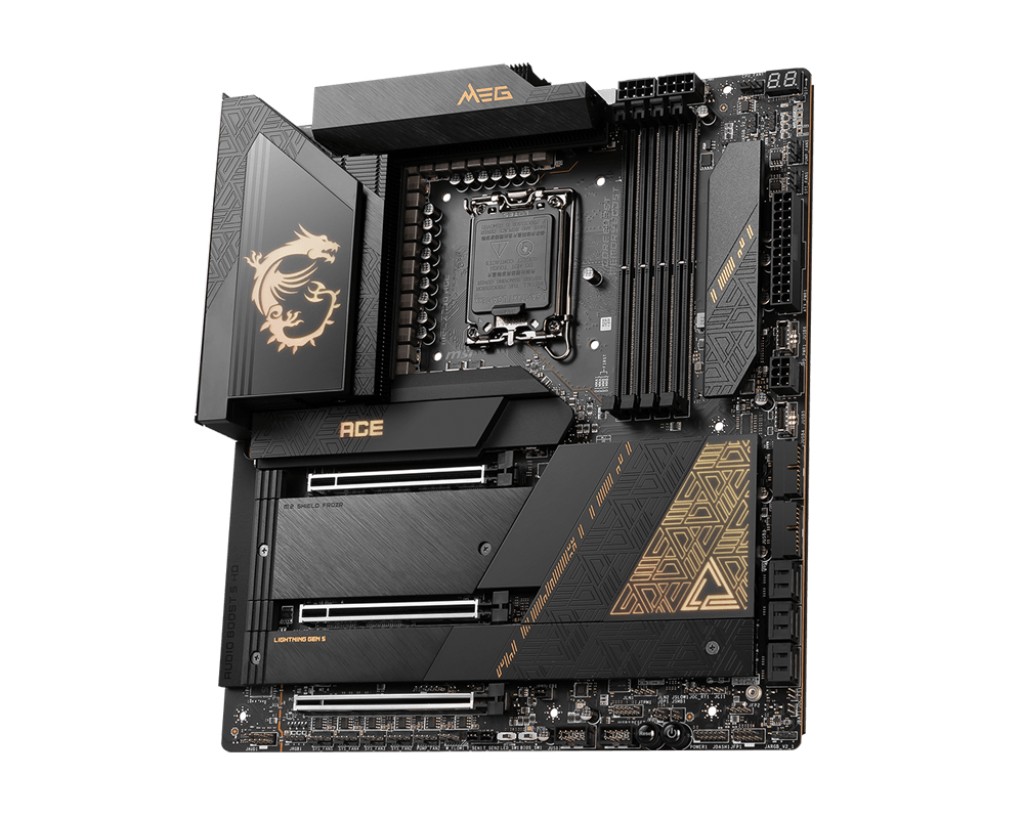

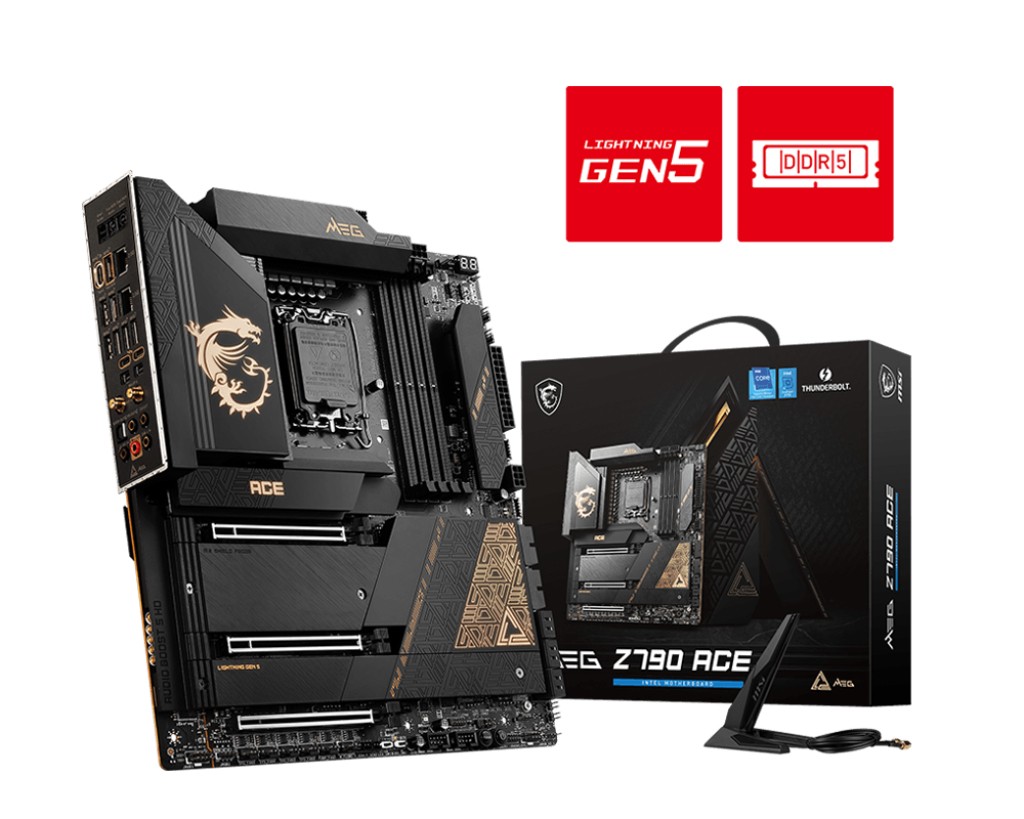

MSI MEG Z790 ACE (1700) (D)

Codice: CE70630

Produttore: MSI

PN: 7D86-001R

EAN: 4711377025546



698.25 €
Non disponibile

Reso facile entro 30 giorni dalla consegna Dettagli



ASUS ROG MAXIMUS Z690 HERO Intel Z690 LGA 1700 ATX

Disponibile

620.04 €

ASUS ROG MAXIMUS Z790 APEX Intel Z790 LGA 1700 ATX

Disponibile

741.96 €



CHIPSET    INTEL Z790
CPU SUPPORT    Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY    4x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS    1x Type-C DisplayPort
Supports a maximum resolution of 4K 60Hz

*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.
ONBOARD THUNDERBOLT    Thunderbolt chip JHL8540
2x Thunderbolt4 (USB-C) ports
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
EXPANSION SLOT    3x PCI-E x16 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

*PCI_E1 slot will run at x8 speed when installing device in the PCI_E2 slot or M2_4 slot.
**M2_4 slot will be unavailable when installing device in the PCI_E2 slot.
MULTI-GPU    Supports AMD MULTI-GPU
STORAGE    5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
6x SATA 6G port

*M2_4 slot will be unavailable when installing in the PCI_E2 slot.
**SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*SATA_A1_A2 do not support RAID function.
USB    4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
2x USB 3.2 Gen2x2 Type C (Front)

*To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
**JUSB6 doesn’t support USB 2.0 device.
LAN    2x Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH    Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
AUDIO    Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O    1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
2x USB 3.2 Gen 2x2 Type C
V-check point
LED FEATURE    1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

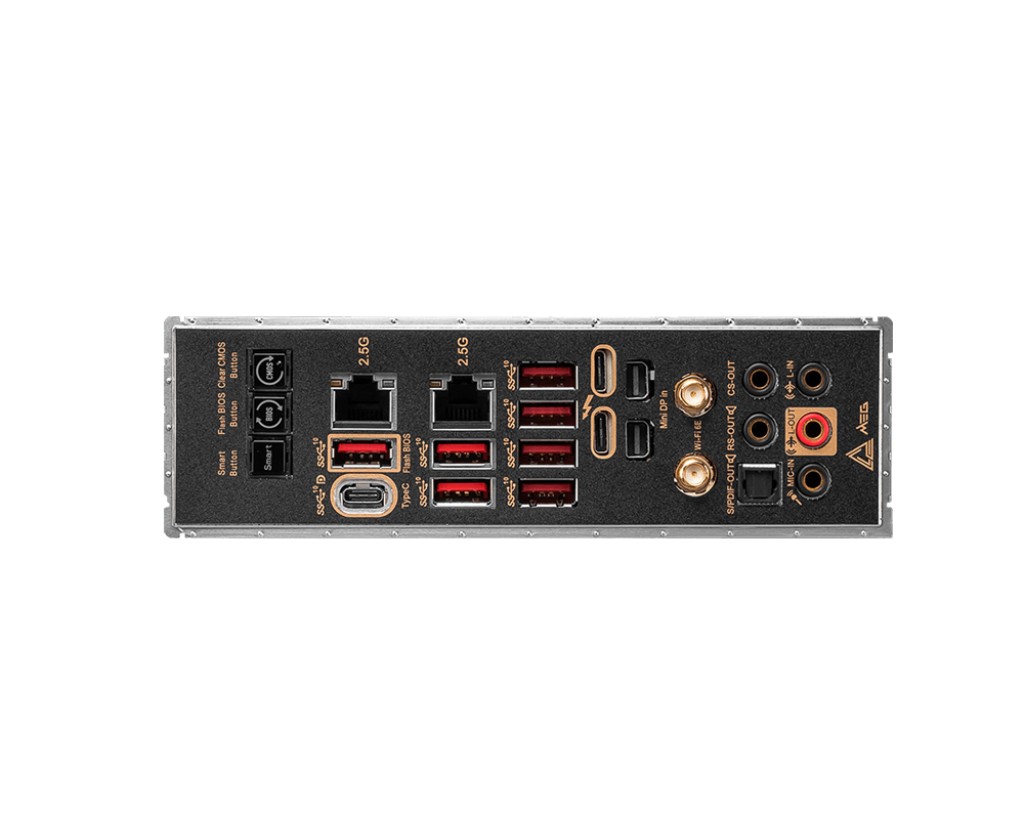

BACK PANEL PORTS
Clear CMOS Button
Flash BIOS Button
2.5G LAN
2.5G LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out

OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION    E-ATX
277mmx304.8mm
