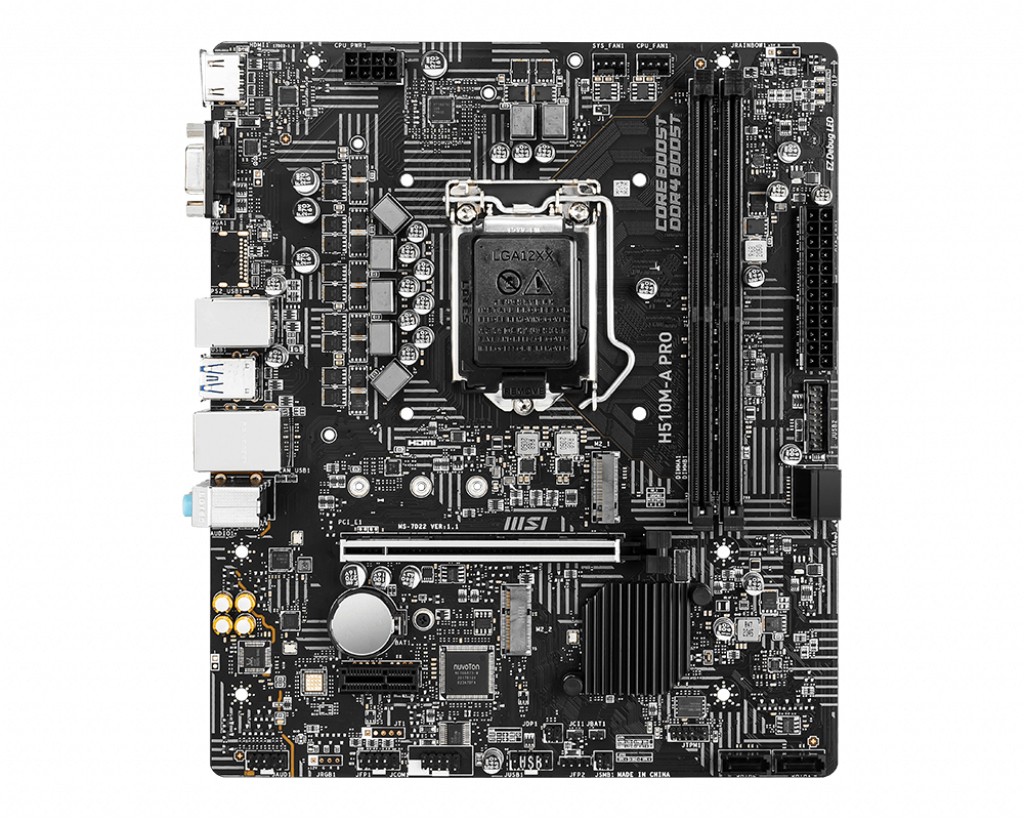

Mb Msi H510M-A Pro S1200 2D4 2M.2 4S3 U3.2 Gbl H/V Micro Atx - Ricondizionata

Processore
Produttore processore
The manufacturer that produced the processor.    Intel
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.    LGA 1200
Processori compatibili
A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.    Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Numero massimo processori SMP
processore MP    1
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.    DDR4-SDRAM
Numero di slot di memoria    2
tipo di slot di memoria
A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.    DIMM
Canali di memoria    Dual-channel
Non-ECC    Sì
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.    2133,2666,2933,3200 MHz
RAM massima supportata
The maximum internal memory which is available in the product.    64 GB
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.    HDD & SSD
Interfacce dell'unità di archiviazione supportate    M.2, SATA
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.    5
Grafica
Scheda grafica integrata
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.    Sì
Risoluzione massima
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.    4096 x 2304 Pixel
Numero di display supportati
The number of displays that can be used with this product.    2
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.    1
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.    1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.    4
Numero totale di connettori SATA    4
Connettore pannello audio frontale    Sì
Connettore ATX (24-PIN)    Sì
Numero di connettori EATX    1
Connettore ventola CPU    Sì
Connettore d'intrusione del telaio    Sì
Connettori periferiche (Molex) (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.    2
Connettore di potenza EPS (8-Pin)    Sì
Connettore TPM    Sì
Intestazioni della porta seriale    1
Connettore con potenza 12V    Sì
Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.    4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A    2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.    1
Quantità porte PS/2
iL numero di connettori PS2 per tastiere e mouse. Il nome deriva dal' IBM Personal System/2.    1
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.    1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.    1
Versione HDMI    2.0b
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.    Sì
Connettore USB
The type of USB connector/port that this product has.    USB tipo A
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.    Sì
Tipo di interfaccia Ethernet    Gigabit Ethernet
Controller LAN    Intel® I219-V
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.    No
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.    Intel H510
Chip audio    Realtek ALC897
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.    7.1 canali
Monitoraggio dello stato di salute del PC    CPU, Ventilatore
Componente per
What this product is used as a part of (component for).    PC
Fattore di forma scheda madre
Design of the motherboard (ATX, BTX etc).    micro ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel, AMD.    Intel
Tipologia alimentazione
What the power source is.    ATX
Numero di fori di montaggio    6
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.    Windows 10 x64
Slot espansione
Slot PCI Express x1 (Gen 3.x)    1
PCI Express x16 slots    1
Numero di slot di M.2 (M)    1
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.    236 mm
Profondità
The distance from the front to the back of something.    202 mm
Contenuto dell'imballo
Cavi inclusi    SATA
Drivers inclusi    Sì
