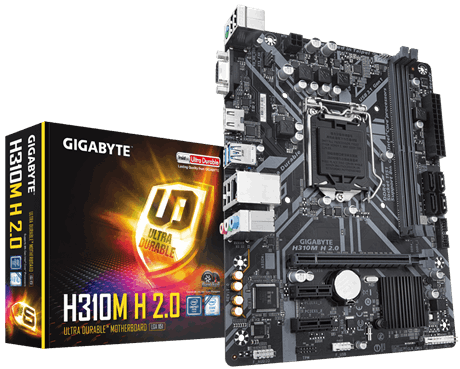

MB 1151v2 Gigabyte GA-H310M-H R2.0

CPU

    Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset

    Intel® H310 Express Chipset

Memory

    2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    Dual channel memory architecture
    Support for DDR4 2666/2400/2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Audio

    Realtek® ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

    Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

    1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface
Chipset:

    4 x SATA 6Gb/s connectors

USB
Chipset:

    4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.1 Gen 1 header
    1 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Clear CMOS jumper

Back Panel Connectors

    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x HDMI port
    2 x USB 3.1 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

I/O Controller

    iTE® I/O Controller Chip

H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    System Information Viewer
    USB Blocker
    V-Tuner
    Support for Q-Flash
    Support for Xpress Install

Bundle Software

    Norton® Internet Security (OEM version)
    Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

    Support for Windows 10 64-bit

Form Factor

    Micro ATX Form Factor; 22.6cm x 17.4cm
