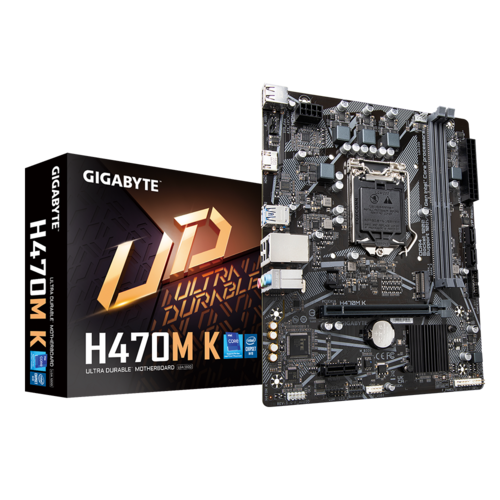

Gigabyte GA-H470M K DDR4 (1200) (D)

Codice: CE73825

Produttore: Gigabyte

PN: H470M K

EAN: 4719331849634



61.17 €

Non disponibile

AVVISAMI

Reso facile entro 30 giorni dalla consegna Dettagli



Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express ... Disponibile
Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express ... 59.88 €
Gigabyte H410M H V2 scheda madre Intel H410 LGA 12... Disponibile Gigabyte H410M H V2 scheda madre Intel H410 LGA 12... 56.85 €
ASUS PRIME H510M-K Intel H510 LGA 1200 micro ATX Disponibile
ASUS PRIME H510M-K Intel H510 LGA 1200 micro ATX 80.75 €
ASROCK H510M-HDV/M.2 SE (1200) (D) Disponibile
ASROCK H510M-HDV/M.2 SE (1200) (D) 56.00 €
Gigabyte H510M H V2 scheda madre Intel H510 Expres... Disponibile
Gigabyte H510M H V2 scheda madre Intel H510 Expres... 61.09 €
ASUS PRIME H510M-K R2.0 (1200) (D) Disponibile
ASUS PRIME H510M-K R2.0 (1200) (D) 80.39 €
ASUS PRIME H510M-E Intel H510 LGA 1200 micro ATX Disponibile
ASUS PRIME H510M-E Intel H510 LGA 1200 micro ATX 82.18 €
ASUS PRIME H510M-R R2.0 (1200) (D) Disponibile
ASUS PRIME H510M-R R2.0 (1200) (D) 79.54 €
MSI PRO H510M-B scheda madre Intel H470 LGA 1200 (... Disponibile
MSI PRO H510M-B scheda madre Intel H470 LGA 1200 (... 62.31 €
Gigabyte H510M S2H V3 (rev. 1.0) Intel H470 Expres... Disponibile
Gigabyte H510M S2H V3 (rev. 1.0) Intel H470 Expres... 64.73 €


CPU
LGA1200 package:
11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset
Intel® H470 Express Chipset
Memory
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot:
Supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1 x M.2 connector:
Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 5
Intel® Optane™ Memory Ready
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
