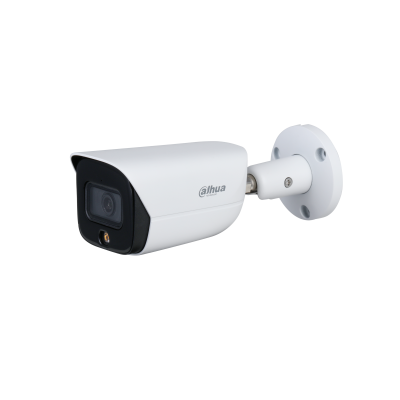

Camera Bullet Ip 5Mp Ai 3.6Mm Ai Fc Fullcolor Ip67 Ir30 Protez Perim

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 Lux@F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°

3.6 mm: Horizontal 77° × Vertical 56° × Diagonal 101°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.4 m (7.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6 mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

Professional, Intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 @1–20 fps
2688 × 1520 @1–25/30 fps
Sub stream: 704 × 576 @1–25 fps/704 × 480 @1–30 fps
Third stream: 1280 × 720@1–25/30 fps

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8, IE9, IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE

Power Consumption

< 8.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than 95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67
