Processore | |
Produttore processore | AMD |
Presa per processore | Presa AM4 |
Processori compatibili | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Memoria | |
Tipi di memoria supportati | DDR4-SDRAM |
Numero di slot di memoria | 4 |
RAM massima supportata | 128 GB |
tipo di slot di memoria | DIMM |
Velocità di memoria supportate | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
Controller di archiviazione | |
Interfacce dell'unità di archiviazione supportate | M.2,SATA |
I/O interni | |
Connettori USB 2.0 | 2 |
Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
Numero di connettori SATA | 4 |

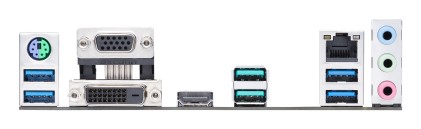

Pannello posteriore porte I/O | |
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 4 |
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A | 2 |
Quantità porte Ethernet LAN (RJ-45) | 1 |
Quantità porte HDMI | 1 |
Quantità porte DVI-D | 1 |
Quantità porte PS/2 | 1 |
Collegamento in rete | |
Collegamento ethernet LAN | Sì |
Controller LAN | Realtek 8111H |
Bluetooth | Sì |
Versione Bluetooth | 5.1 |
Caratteristiche | |
Fattore di forma scheda madre | micro ATX |
Famiglia di chipset per scheda madre | AMD |
Chipset scheda madre | AMD B550 |
BIOS | |
Tipo BIOS | UEFI AMI |
Dimensione memoria BIOS | 256 Mbit |
Recensioni ASUS PRIME B550M-A Presa AM4 micro ATX AMD B550
