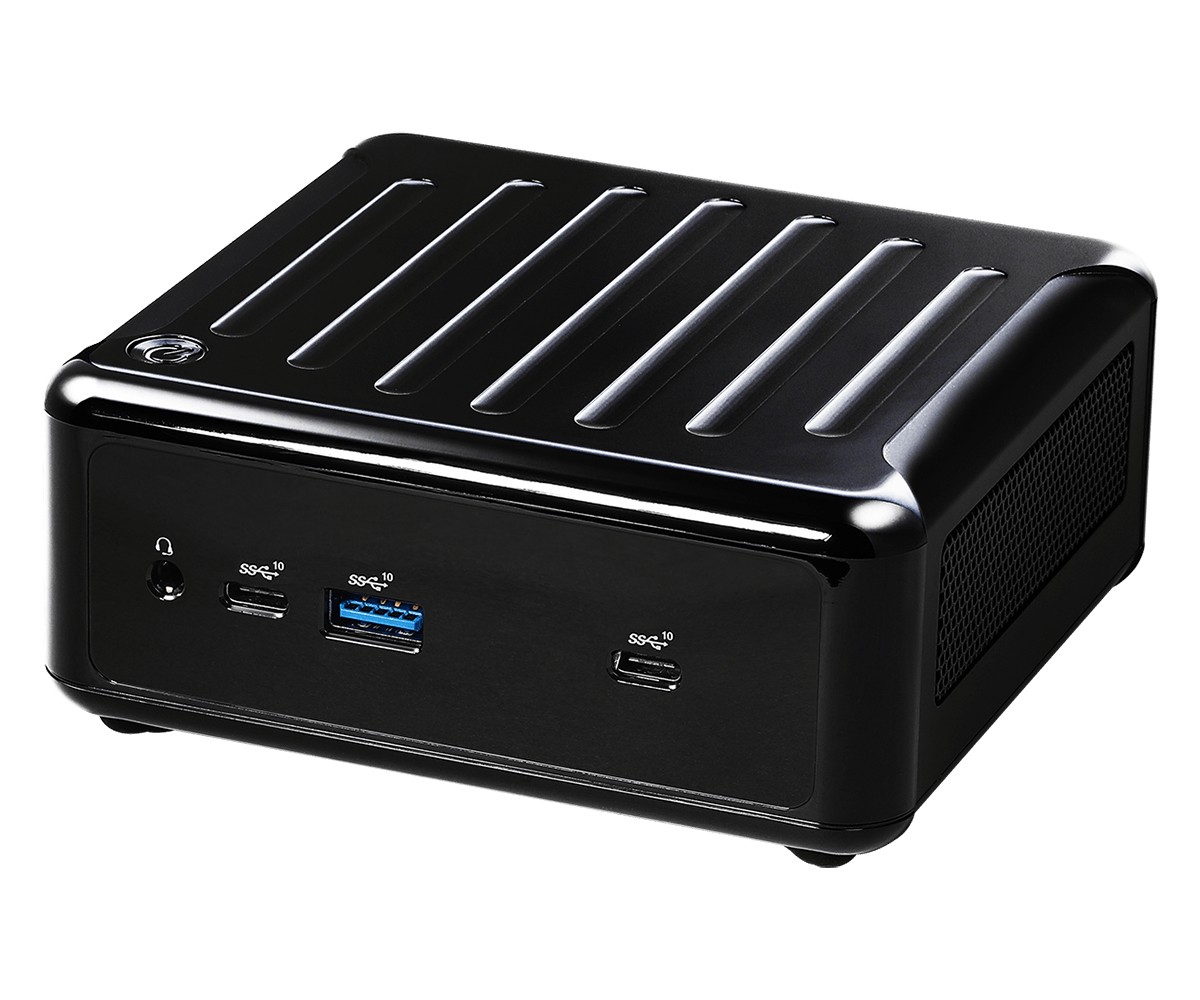

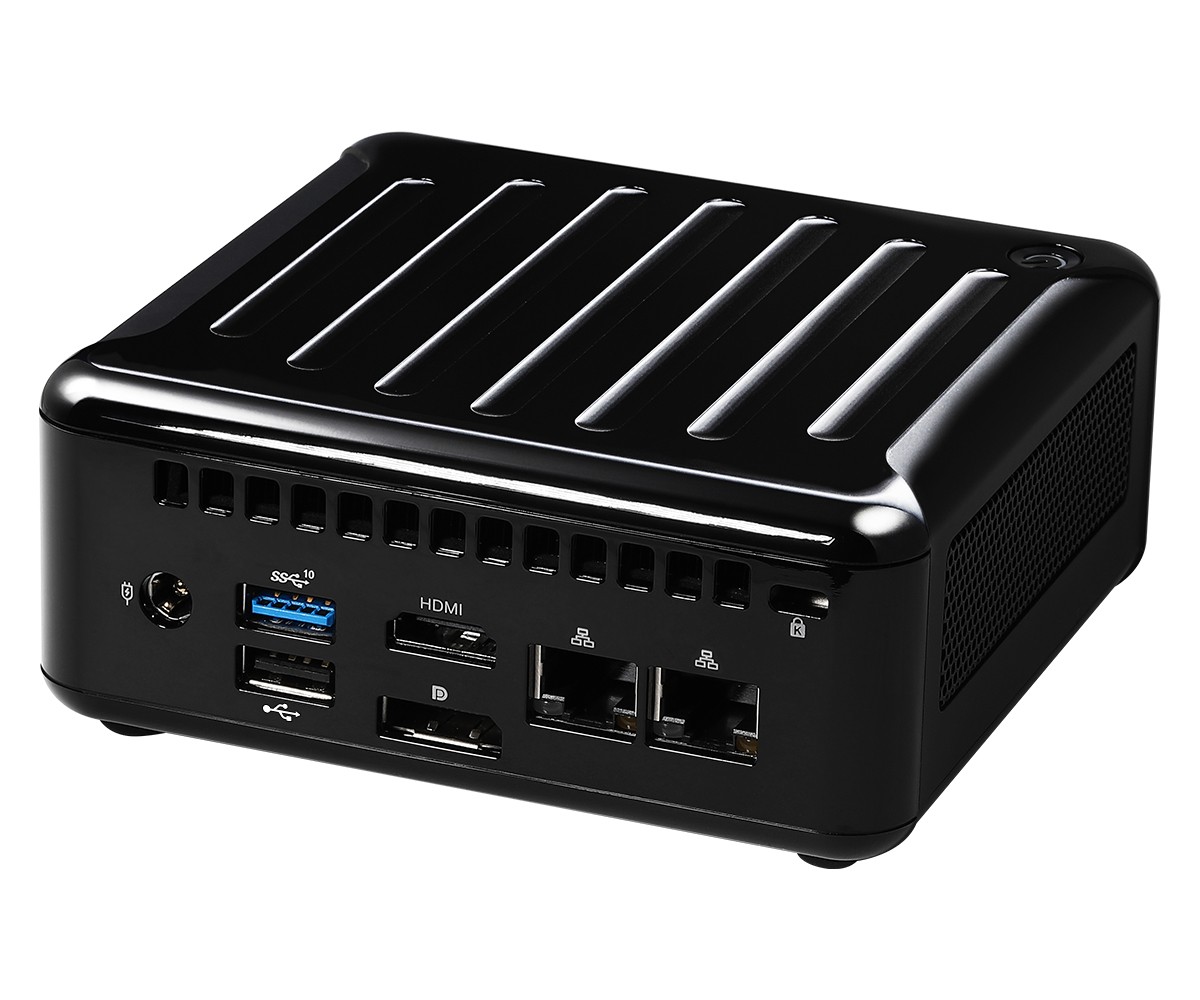

ASRock NUC BOX-J6412 Celeron J6412

Form Factor
Dimensions    110.0 x 117.5 x 47.85mm
Processor System
CPU    Intel® ElkHart Lake SoC Processors
NUC BOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W
Chipset    SoC
BIOS    AMI SPI 256 Mbit
Memory
Technology    Dual Channel DDR4 3200 MHz
Capacity    32GB (16 GB per DIMM)
Socket    2 x 260-pin SO-DIMM
Graphics
Controller    Intel® Gen 11 Graphics
HDMI    HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort    DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay    Dual-Display
Expansion Slot
M.2/WLAN    1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)
Audio
Interface    Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed    Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector    2 x RJ-45

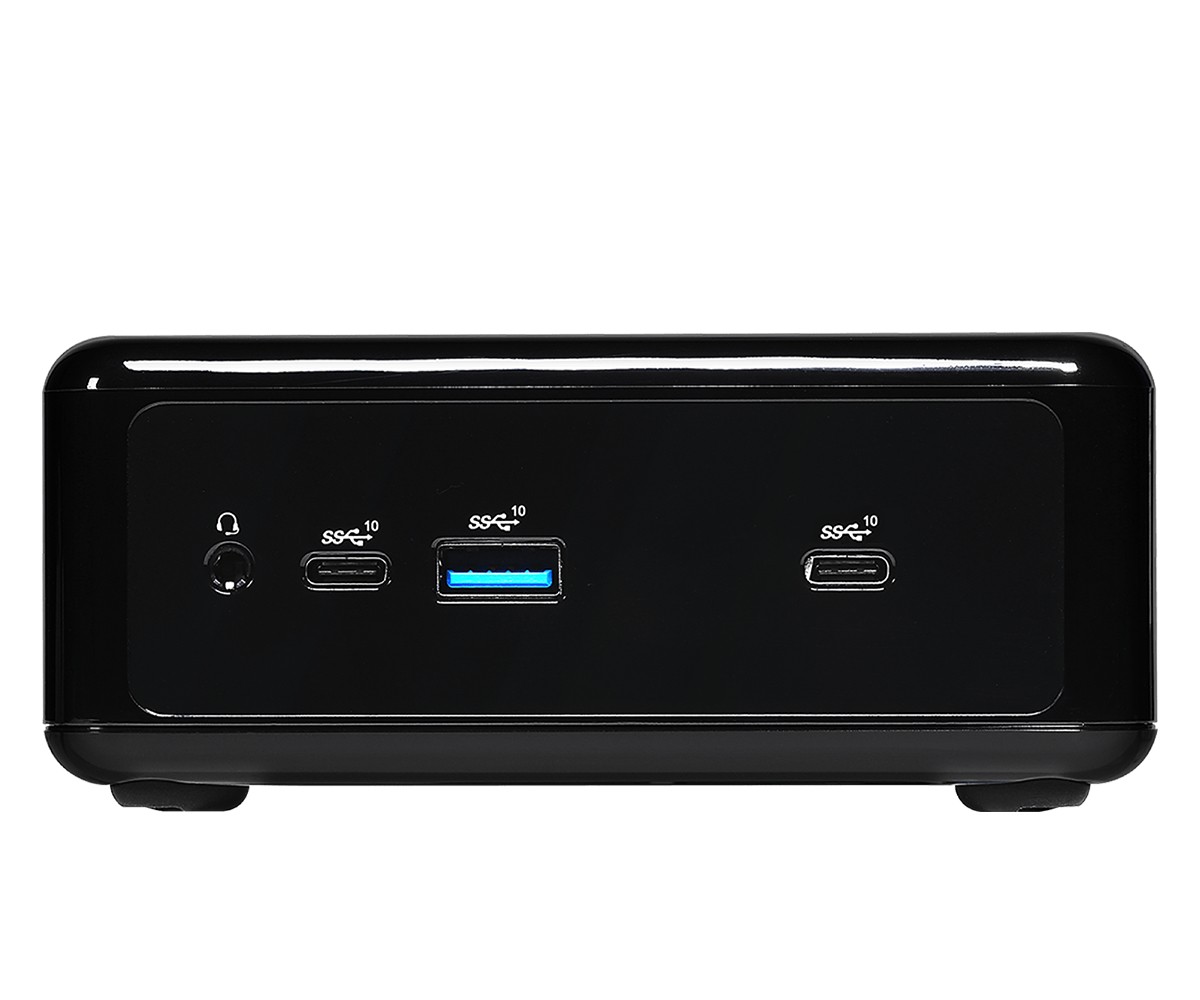

Front I/O
USB    1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
Audio    1 (headphone & microphone jack)

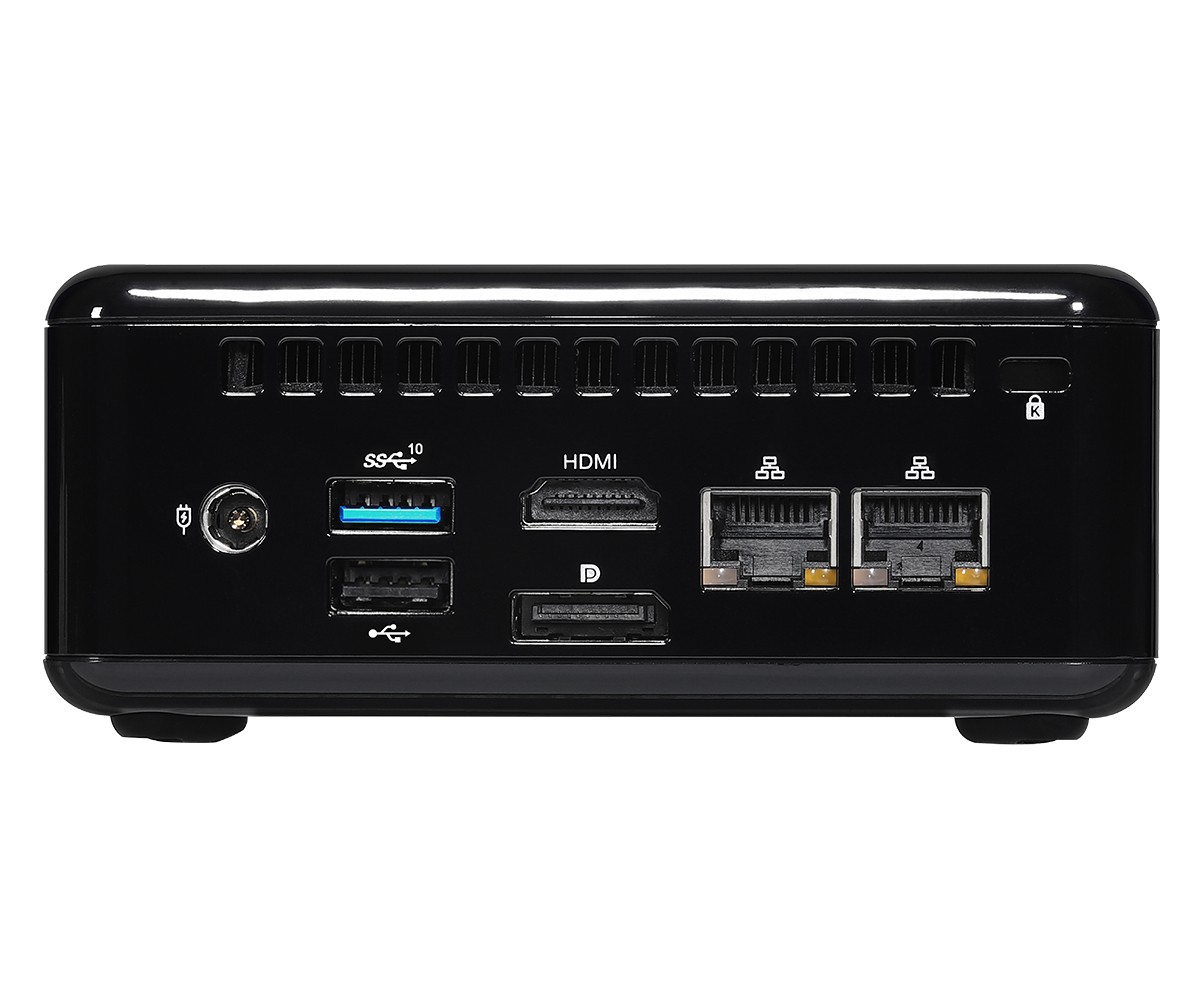

Rear I/O
HDMI    1 x HDMI 2.0b
DisplayPort    1 x DP 1.2
Ethernet    2 x 1 Gigabit LAN
USB    1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack    1
Storage
M.2    1 x M.2(KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA    1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output    From Super I/O to drag RESETCON#
Interval    256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR    1 x 19V/65W Power Adapter
Power On    AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp    0ºC ~ 40ºC
Storage Temp    -40° C – 85° C
Operating Humidity    5% ~ 90%
Storage Humidity    5% ~ 90%
Mechanical
Construction    Plastic
Mounting    VESA mounting
Dimensions (W x H x D)    110.0 x 117.5 x 47.85mm
Weight    Net Weight:1.0Kg
Others
OS Support    Windows 10
Certifications    CE, FCC Class A
Packing List    1 x 19V/65W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Longivity Support    No
TPM    TPM 2.0 onboard IC
