Dimensions 110.0 x 117.5 x 47.85 mm
Processor System
CPU AMD Ryzen™ 5 4500U, 6 Cores
(4500U, 6C, 2.3GHz, 15-25W)
Chipset SoC
BIOS AMI SPI 128 Mbit
Memory
Technology Dual Channel DDR4 3200MHz
Capacity 64 GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller AMD Radeon™ Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Max 4 display (Included 2 outputs from Type C)
Expansion Slot
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
WLAN 1 x Intel® Wi-Fi 6 AX200 module
Audio
Interface Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111FPV with 10/100/1000 Mbps, support DASH function
Connector 2 x RJ-45

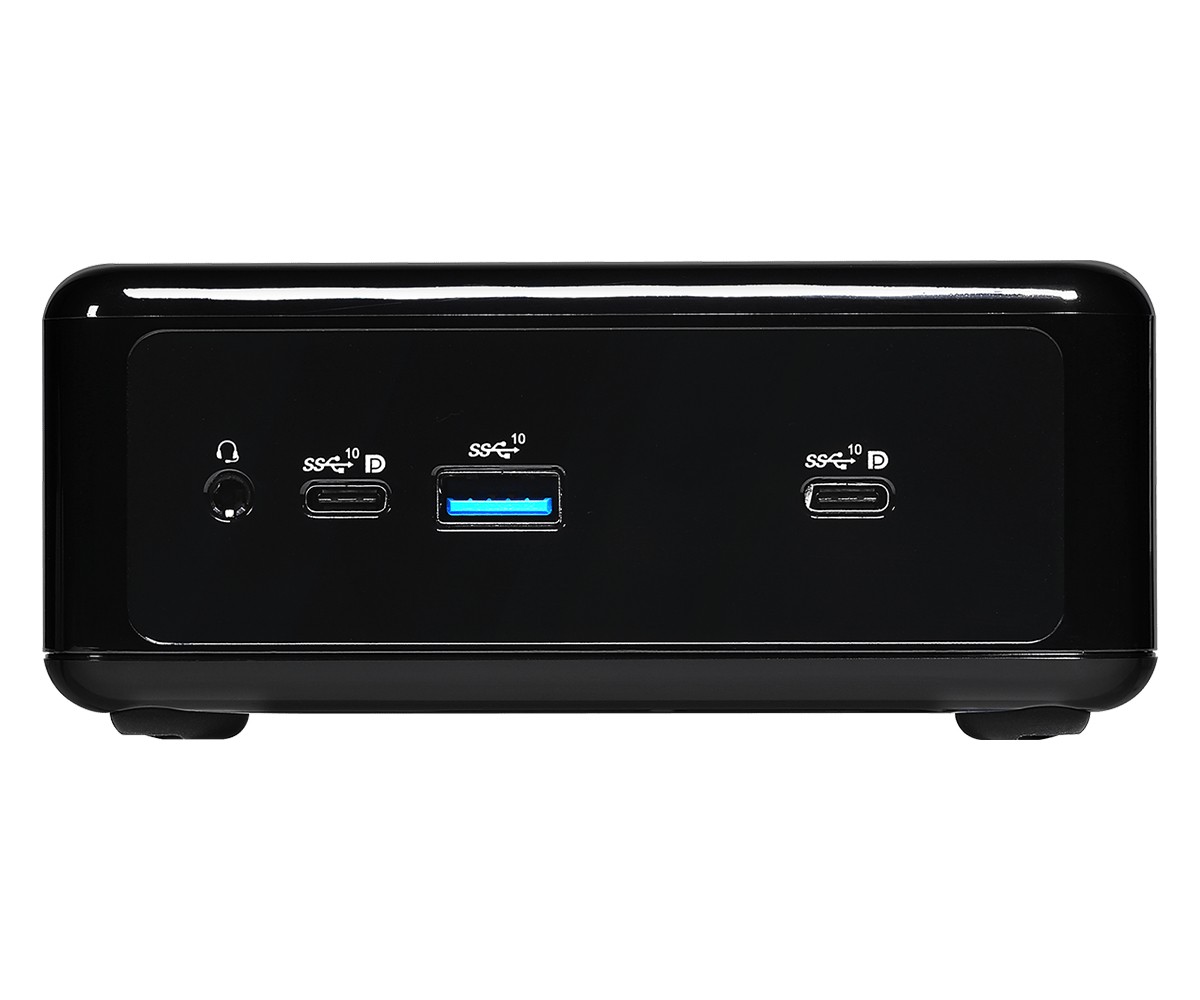

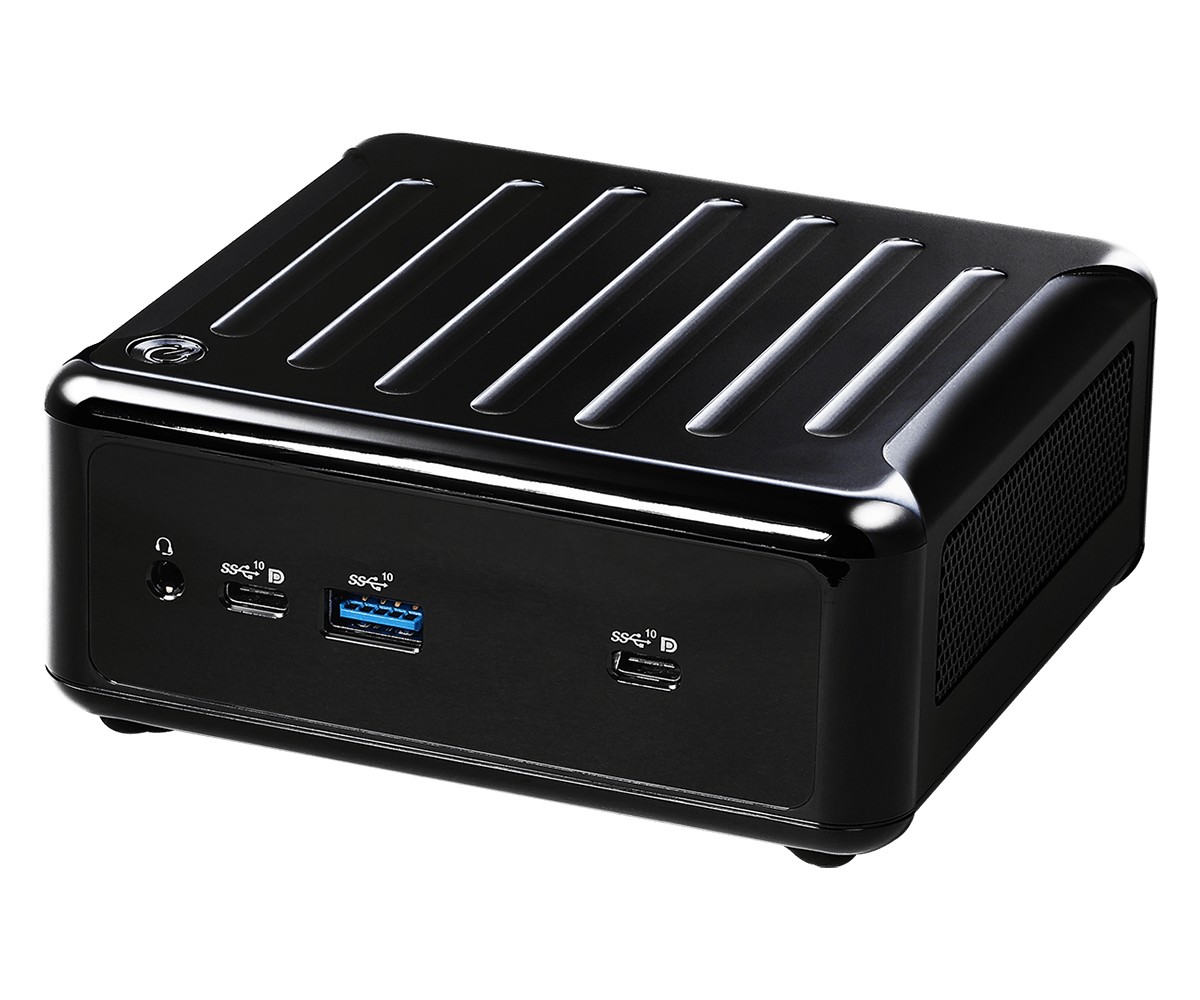

Front I/O
USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output)
Audio 1 (headphone & microphone jack)

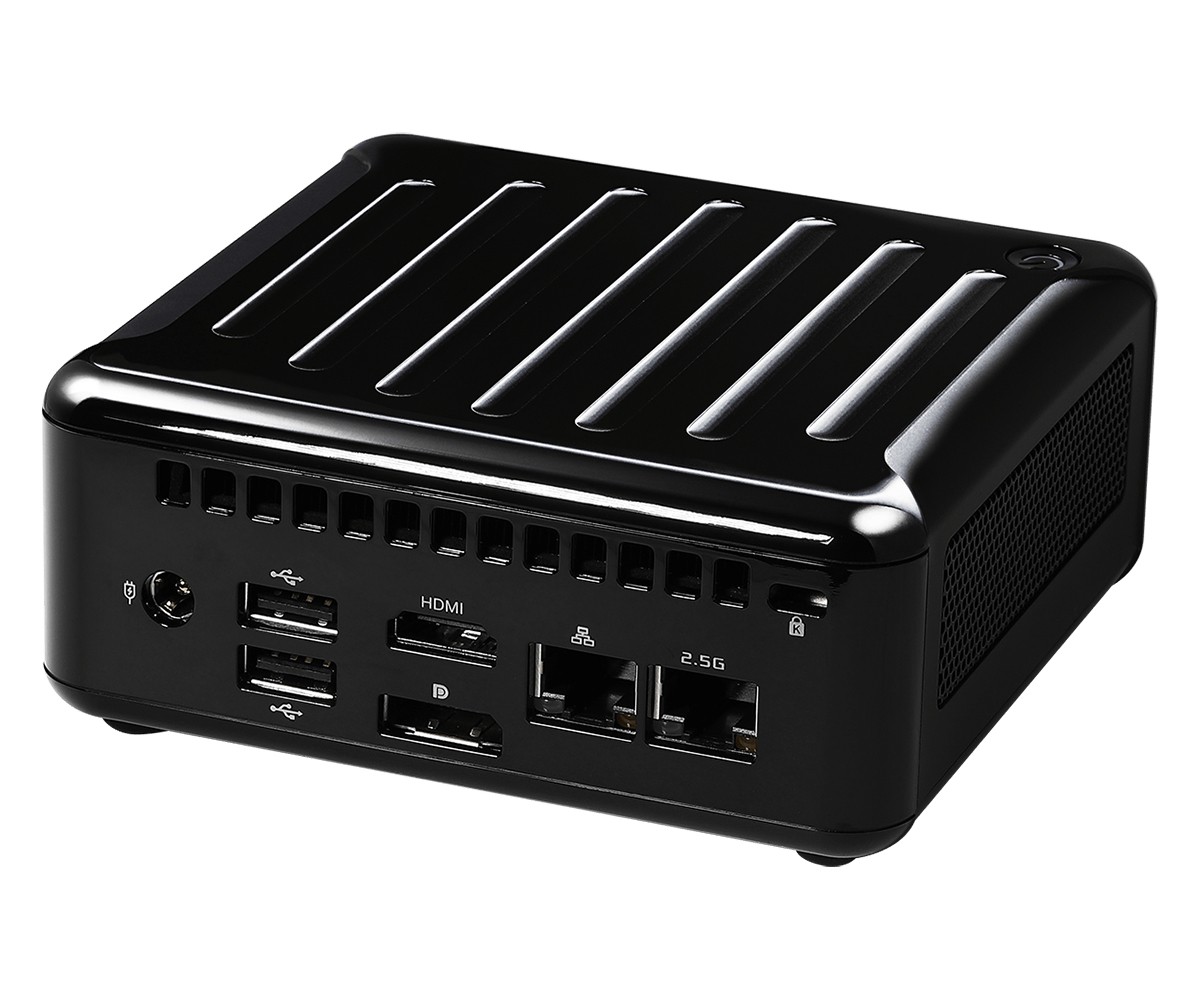

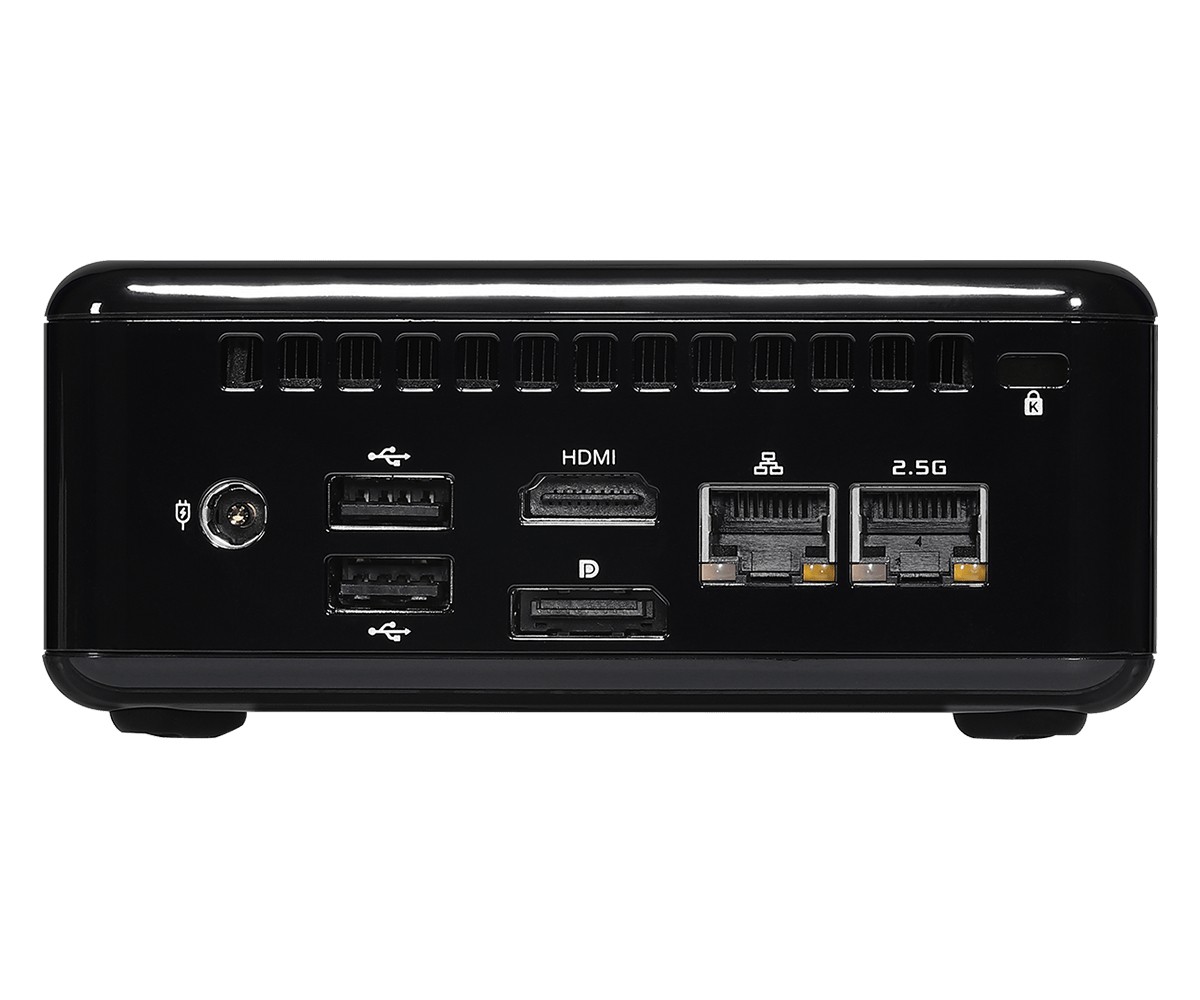

Rear I/O
HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2a
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 2.0
DC Jack 1
Storage
M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec
Power Requirements
Input PWR 19V/90W Power Adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Mechanical
Construction Plastic
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85 mm
Weight Net Weight: 1kg
Others
OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/90W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
1 x Bracket for M.2 2280 support
Longivity Support No |
