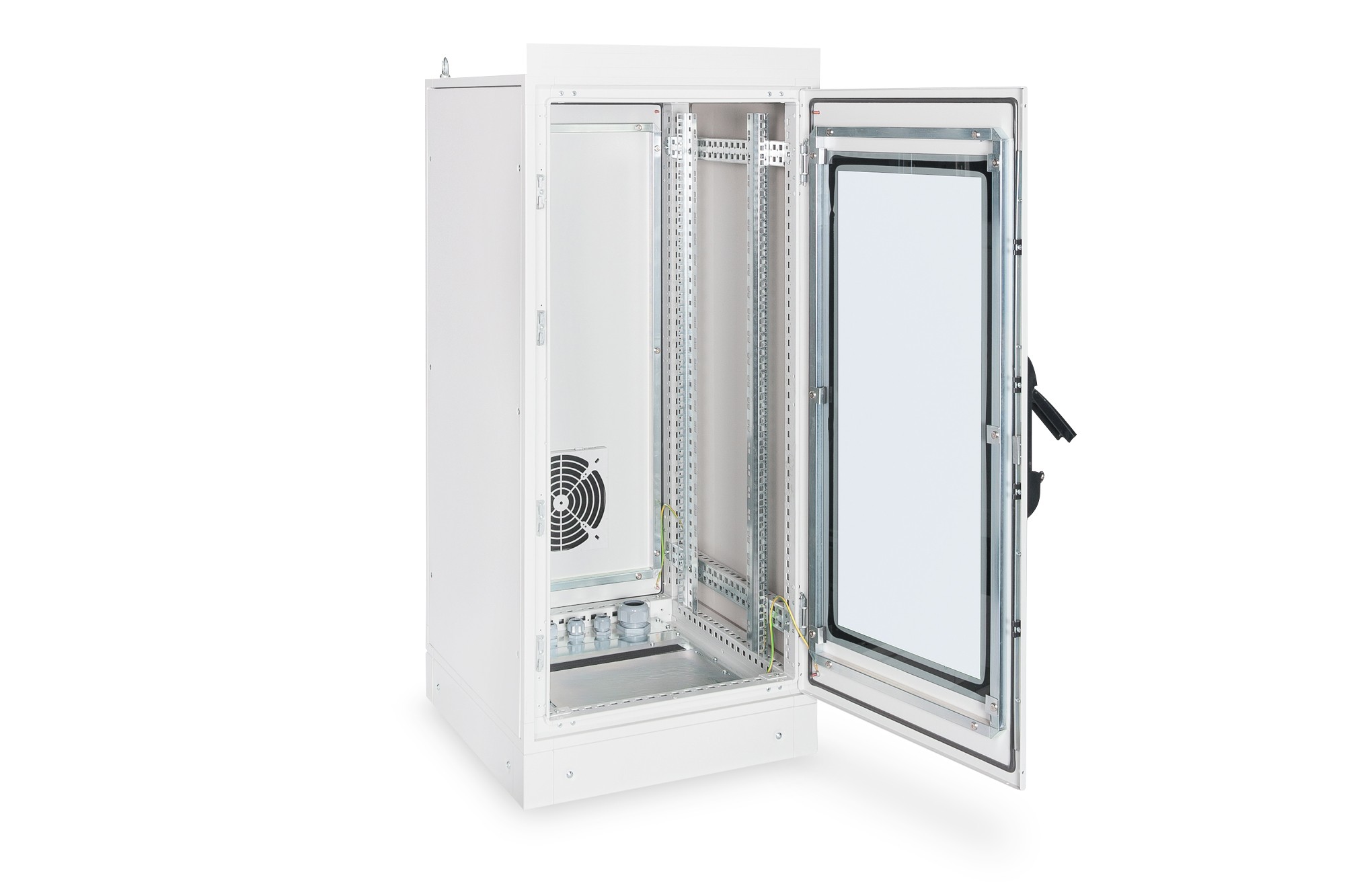

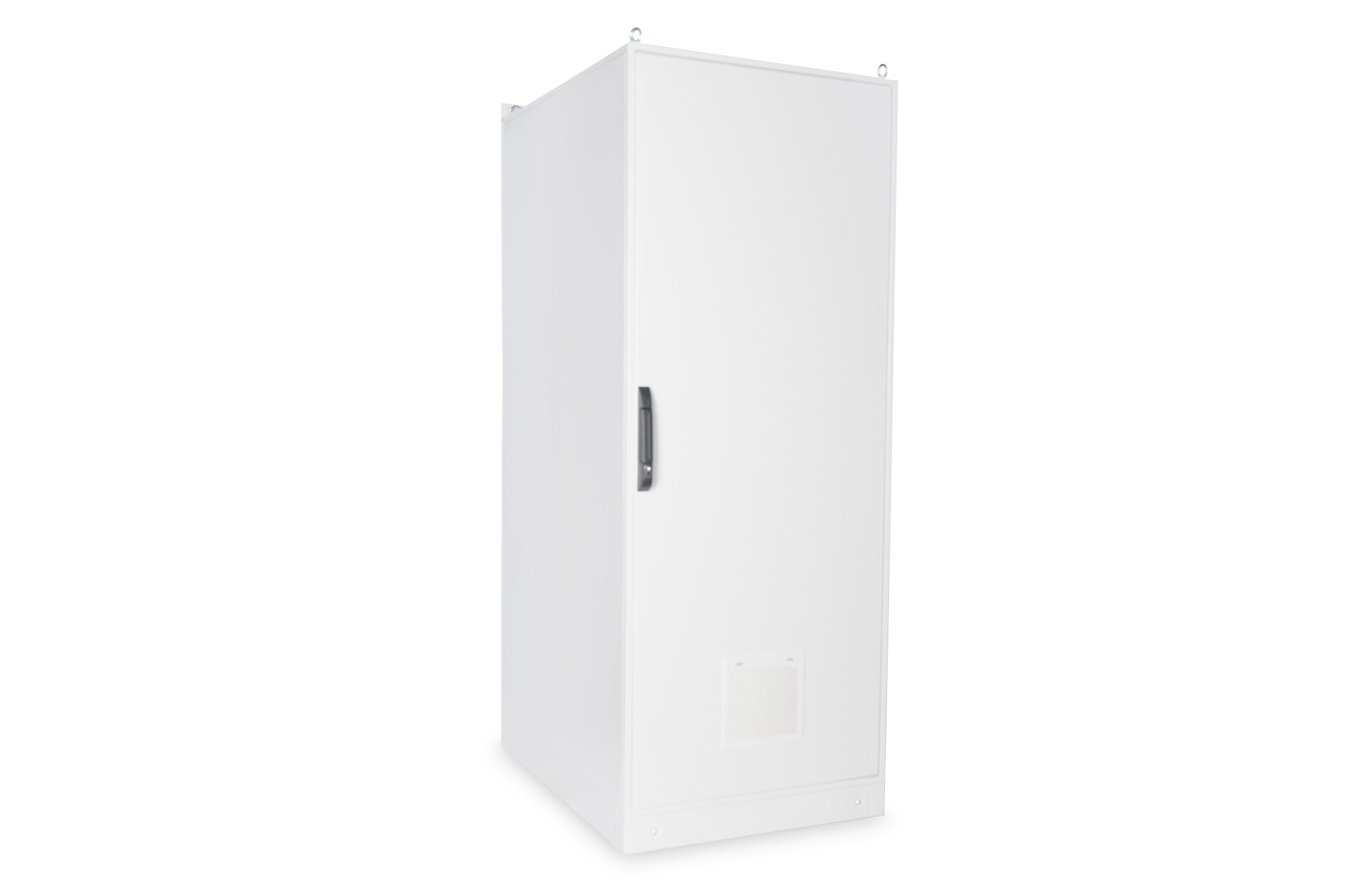

Digitus Industrial Network Cabinet, Indoor, IP55, Rack indipendenti, 24U, 1500 kg, Lucchetti, Gestione dei cavi ottimizzata, Grigio
Digitus Industrial Network Cabinet, Indoor, IP55. Tipo: Rack indipendenti, Capacità di rack: 24U, Peso massimo (capacità): 1500 kg, Lucchetti, Gestione dei cavi ottimizzata, Codice di protezione internazionale (IP): IP55, Colore del prodotto: Grigio

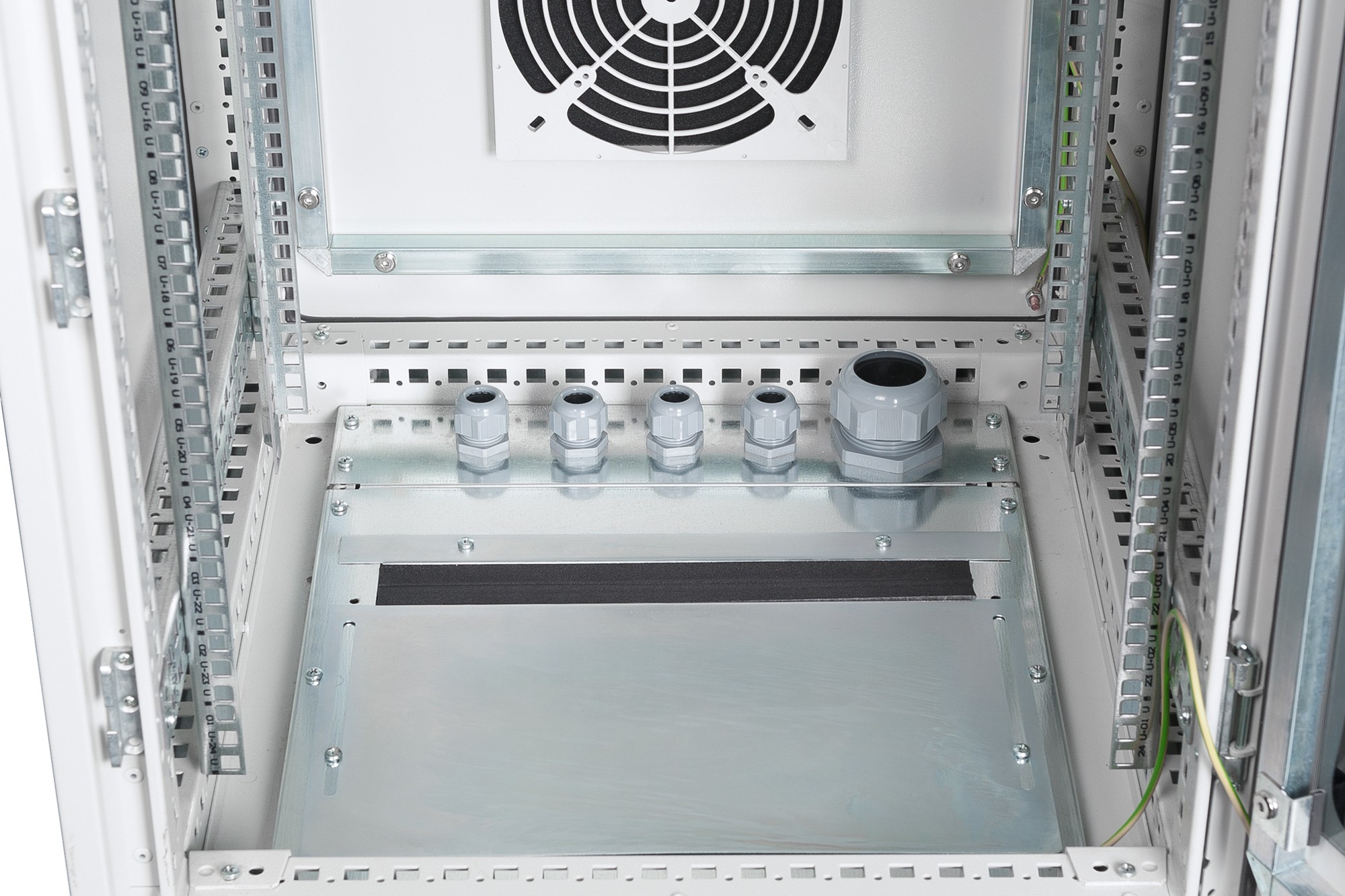

- Safety class IP55 against dust & water ingress acc. to IEC EN60529 - IK10 mechanical impact resistance acc. to IEC EN62262 - 4 point locking system on front- & rear door - incl. already mounted plinth The 483 mm (19") industrial cabinets are protected against dust and water ingress acc. to safety level IP55 (IEC EN 60529) to offer optimized conditions for the user friendly installation of active- and passive network components accompanied by a neat cable management in an industrial area. The color is created by a 70-90 µ strong powder coating in color grey (RAL 7035) with an adhesion capability acc. to EN ISO 2409: Class 0 to 1. An additional implemented 500 hours salt spray resistance test affirms the possible operating temperature range from -25 °C up to +70 °C. The inside mounted 483 mm (19”) profile rails (two pairs = 4 pieces) are galvanized and with height unit marking (countable from both directions). They are variable in depth and connected with additional depth support bars to realize extensive 483 mm (19”) equipment installations. Furthermore there is an rotary profile hole structure inside. Each cabinet is equipped with a plinth (100 mm height) which offers additional space for cabling. The base of each cabinet is equipped with a sliding cable entry panel with rubber sealing as well as five PG cable screw inlets (4x PG21 + 1x PG48). An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.
Digitus Industrial Network Cabinet, Indoor, IP55. Tipo: Rack indipendenti, Capacità di rack: 24U, Peso massimo (capacità): 1500 kg, Lucchetti, Gestione dei cavi ottimizzata, Codice di protezione internazionale (IP): IP55, Colore del prodotto: Grigio
- Safety class IP55 against dust & water ingress acc. to IEC EN60529 - IK10 mechanical impact resistance acc. to IEC EN62262 - 4 point locking system on front- & rear door - incl. already mounted plinth The 483 mm (19") industrial cabinets are protected against dust and water ingress acc. to safety level IP55 (IEC EN 60529) to offer optimized conditions for the user friendly installation of active- and passive network components accompanied by a neat cable management in an industrial area. The color is created by a 70-90 µ strong powder coating in color grey (RAL 7035) with an adhesion capability acc. to EN ISO 2409: Class 0 to 1. An additional implemented 500 hours salt spray resistance test affirms the possible operating temperature range from -25 °C up to +70 °C. The inside mounted 483 mm (19”) profile rails (two pairs = 4 pieces) are galvanized and with height unit marking (countable from both directions). They are variable in depth and connected with additional depth support bars to realize extensive 483 mm (19”) equipment installations. Furthermore there is an rotary profile hole structure inside. Each cabinet is equipped with a plinth (100 mm height) which offers additional space for cabling. The base of each cabinet is equipped with a sliding cable entry panel with rubber sealing as well as five PG cable screw inlets (4x PG21 + 1x PG48). An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.
Caratteristiche | |
Capacità di rack | 24U |
Tipo | Rack indipendenti |
Peso massimo (capacità) | 1500 kg |
Colore del prodotto | Grigio |
Materiali | Acciaio, Vetro temperato |
Tipo di cornice | Chiuso |
Design del prodotto | 4 montanti |
Struttura della porta anteriore | Vetro |
Pannelli laterali inclusi | Sì |
Lucchetti | Sì |
Serratura a chiave della porta posteriore | Sì |
Serratura a chiave per porta anteriore | Sì |
Guide di montaggio regolabili | Sì |
Tipo di raffreddamento | Passivo |
Gestione dei cavi ottimizzata | Sì |
Rotelle | |
Codice di protezione internazionale (IP) | IP55 |
Condizioni ambientali | |
Intervallo temperatura di funzionamento | -25 - 70 °C |
Dimensioni e peso | |
Dimensione | 48,3 cm (19") |
Larghezza | 600 mm |
Profondità | 600 mm |
Altezza | 1300 mm |
Dati su imballaggio | |
Larghezza imballo | 650 mm |
Profondità imballo | 650 mm |
Altezza imballo | 1350 mm |
Volume del pacco | 570375 cm³ |
Peso dell'imballo | 86 kg |
Dati logistici | |
Paese di origine | Turchia |
Codice del Sistema Armonizzato (SA) | 85381000 |
UK Codice della tariffa commerciale | 94032080 |
