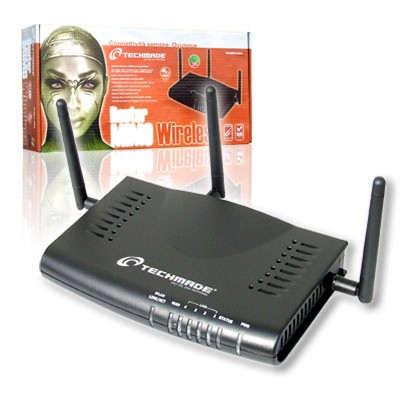

Techmade Router Wireless con 3 antenne WR514WD3

TM-WR514WD3
ROUTER MIMO WIRELESS

Specifiche Tecniche:

Data Transfer Rates
11Mbps (11b mode), 54Mbps (11g mode), 54Mbps
(Packet-OVERDRIVETM Technology)

Standard
IEEE 802.11b / 802.11g (Wireless),
IEEE 802.3 / 802.3u (Wired)

Raggio Operativo
Indoor: 200m, Outdoor: 400m
(Range-OVERDRIVETM Technology)

Accesso ad Internet
Connect to Broadband (Cable or xDSL) modem or
Ethernet backbone for Internet Surfing
Multiple WAN connection: Dynamic IP, Static IP,
PPPoE, PPTP, L2TP

Bridging
IEEE 802.1x
Software bridge between wireless and wired LAN

Routing
Static IP Routing
RIP version 1 (RFC 1058) and version 2 (RFC 1723)

IP Management
NAT (Network Address Translation)
NAPT (Network Address and Port Translation)
DHCP (Dynamic Host Configuration Protocol)
Server/Client
VPN pass through-IPSec, PPTP, L2TP
Port Mapping
Virtual server
Virtual DMZ host
DNS
Dynamic DNS

Gestione Sicurezza
Supports 64/128-bit WEP Data Encryption
WPA, WPA2, 802.11i security
RADIUS Server

Firewall
PAP / CHAP / MS-CHAP / MS-CHAPv2
Authentication Password Protected Configuration
MAC filter
Client filter
URL blocking
NAT Protection
Hacker pattern detection

Gestione
Web-based GUI Configuration / Management
Telnet remote management
Device can be managed from any PC on the LAN
Software Upgrade through Web
SNMP v1, v2
UPnP
System Log

Interfaccia
LAN x 4, WAN x 1

Indicatori LED
POWER, STATUS, LAN x 4,
WAN, LINK / ACT (WLAN)

Antenna
3 Antenna Removibili

Frequenza Wireless
2.400~2.4835GHz

Sensitività ricevente
IEEE 802.11b : -84 dBm (Typical),
IEEE 802.11g : -60dBm (Typical)

Potenza di Trasmissione di uscita
11b : 19±1 dBm, 11g : 15±1 dBm

Power
DC 7.5V, 1A

Dimensioni
160mm x 95mm x 30mm

Peso: 320g

Sistemi Operativi supportati

Windows 98SE, ME, 2000, XP, Mac and Linux - VISTA OK!

Requisiti minimi:
1 o più PC (desktop or notebook)
con interfaccia ETHERNET
TCP/IP protocol must be installed on all PCs
Have valid Internet Access account and a
DSL or cable modem
10/100 Base-TX network cables with RJ-45 connectors
Tutti dispositivi Wireless compatibili IEEE 802.11b/g
Internet Explorer - Netscape - Firefox o altro

Regolamentazioni
FCC Part 15 class B, CE

Il prodotto aderisce alla ISO9001 approvata dalla fabbrica.
