ATX Cable 1x 600mm (m)
EPS Cable 2x 750mm (m)
PCIE Cable 2x 750mm, 900mm (m) 4x 750mm (m)
SATA Cable 3x 550mm, 650mm, 750mm, 850mm (m)
Four-Pin Peripheral Cable 2x 550mm, 650mm, 750mm (m)
Floppy Adapter 1x 100mm
AC Power 1x 1500mm (m)
Modular Cable Type Full
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 2x 8pin (4+4)
PCIE 6x 8pin (6+2), 2x 6pin
SATA 12x
Four-Pin Peripheral 6x
Floppy 1x
POWER SPECS
AC Input 100 - 240 VAC, 15A, 50 - 60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 20A 20A 83.3A 2.5A 0.5A
83.3A
100W 999.6W 12.5W 6W
Total 1000W @ +50C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 9 lbs
Size 0mm (H) x 0mm (W) x 0mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 140mm Double Ball Bearing

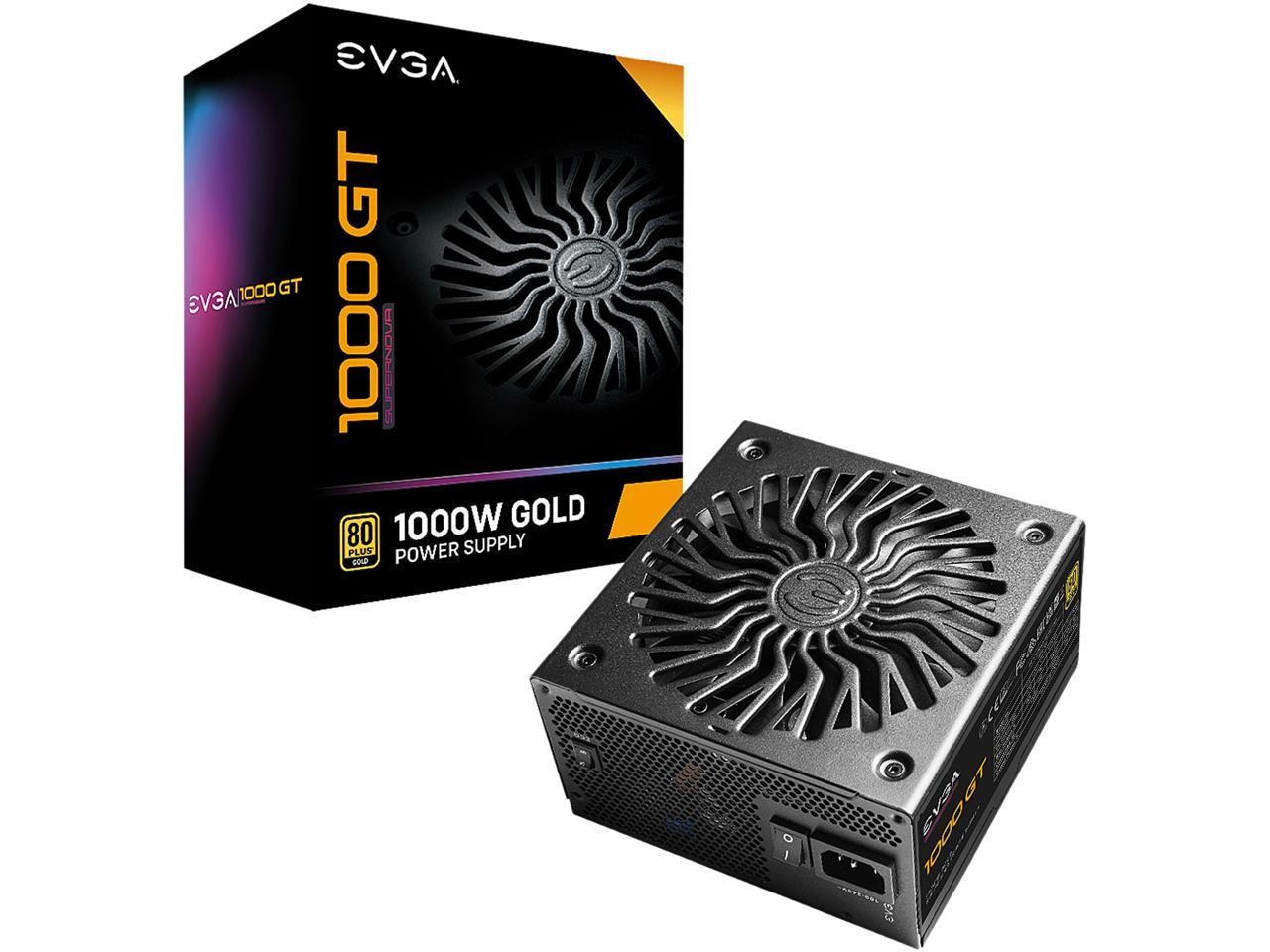

Recensioni Alimentatore EVGA SuperNOVA 1000 GT Fully Modular (80+Gold)
